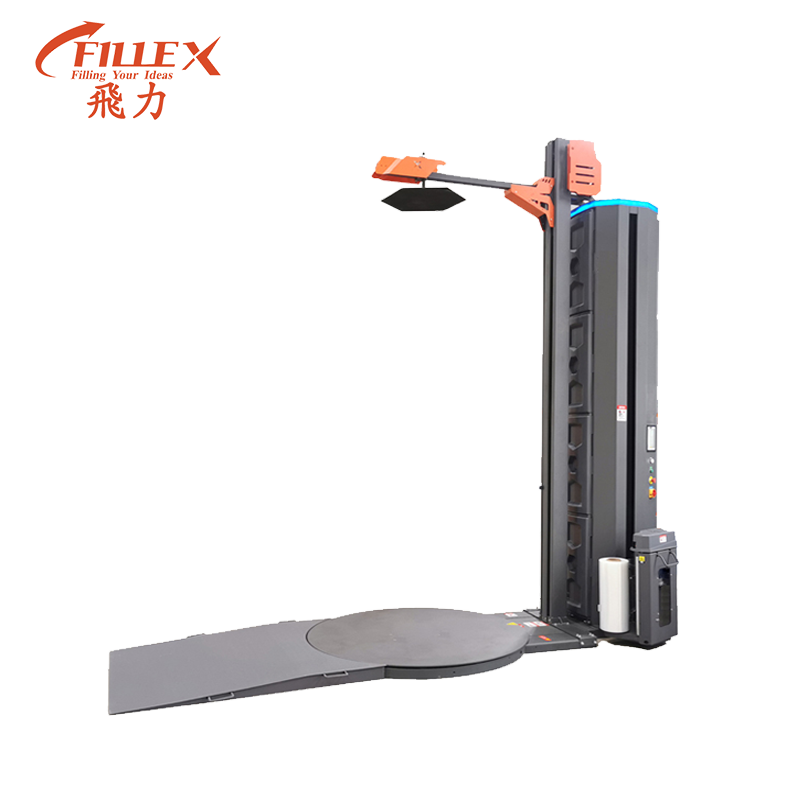

TOP PRESSURE STANDARD PALLET WRAPPING MACHINE

Automatic flat cardboard palletizing system and welding wire coil and electrode rod automatic packaging system is the main star product, which can be customized according to the customer's site requirements, capacity requirements, and other requirements. The palletizing system is composed of: robot, palletizing machine, layer pad inserter and four-sided squiring machine. Its advantage is that the comprehensive efficiency of stacking and palletizing can reach 1 6 - 1 8 cycle times per minute. palletizer. The company's development capabilities and technology research and development capabilities have industry advantages.
Availability:
Quantity:
  • FL-03
  • Fillex

1. Main Performance :

1. Motor Drive Top Plate, stable pressure on goods

2. Pallet stretch wrapping machine use LLDPE stretch film as the main packing material to wrap the bulk cargo stacked on the pallet
3. Film provides extra support during transportation and storage to protect them from dust, moisture.
4. The pallet wrap machine  has been widely used in industries such as glassware, tools, electric & electronic, paper,pottery, food & beverage, etc.

5. High efficiency and low electricity-consumption, convenient in operation.
6. The wrapping type and times can be designed on customers’ requirements.
7. Photoelectric sensor test pallet height automatic ,Auto reset of turn table , Pre-stretch ratio: 300%
10. Programmable control and frequency converter is available.

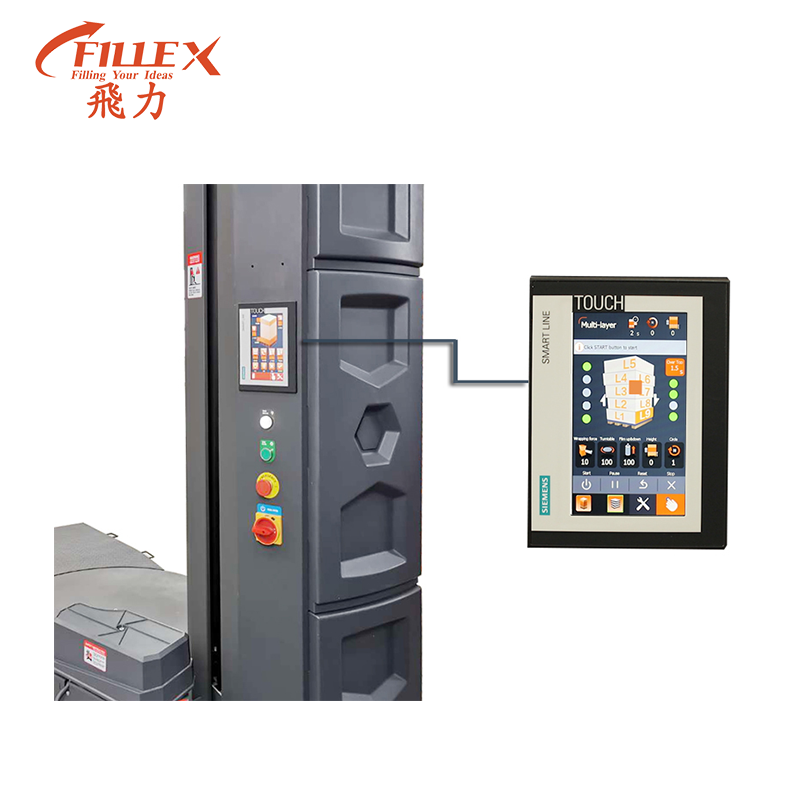

11. PLC control ,manual optional. Wrap cycle (top, bottom, reinforcement adjustment.Variable lift speed/ film tension control. Film up/down controls.
12. Pallet wrapping machine soft start and soft stop.
13. Suitable for light and unsteady pallet ,automatic cut film

2. Technical Parameters

Feature

Main Products

Maximum Wrapping Speed

15-25 loads/hour

Max Wrapping Height & Weight

2200mm / 2000KG

Turntable Speed

0-13RPM(Adjustable)

Turntable Size

1650mm

Turntable Drive

0.75PH Chain Drive

Cut Film

Automatic

Machine Size

L:2800mm  W:1650mm H:3250mm

Machine Weight

800KG

Standard Pre-Stretch

300% pre-stretch

Film Capacity

250mm Diameter

Standard Film Width

500mm

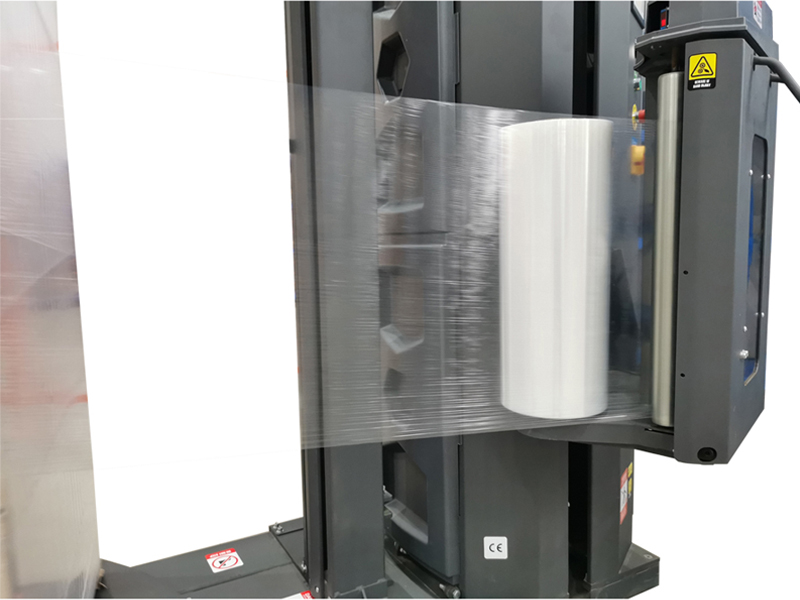

Film Delivery System

Power Pre -Stretch

Packing Force

Changeable

Intelligent-Sensor

Standard

Rope Grip System

Optional

Safety Device

CE standard

Alarm System

Have

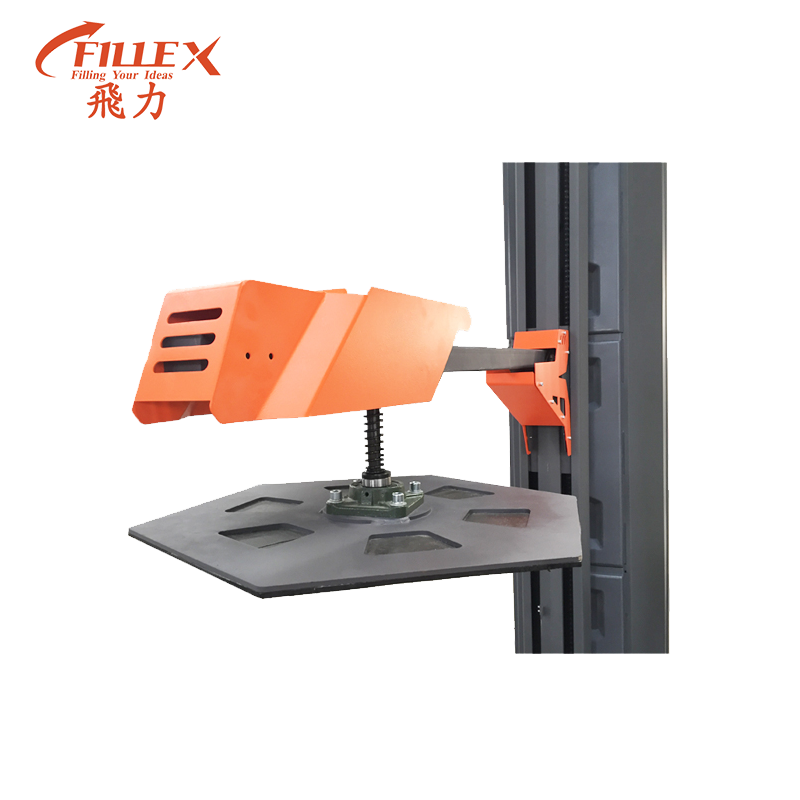

Top Pressure

Motor Drive/600-2200mm press height

Ramp

Optional

FL3加压型智能缠绕机

FL3加压型智能缠绕机-3图片5
