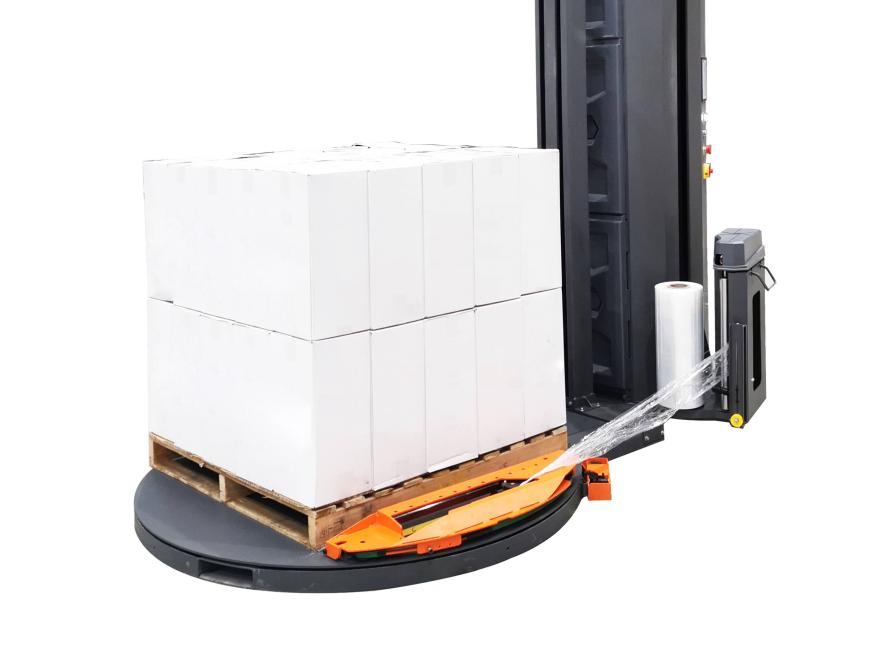

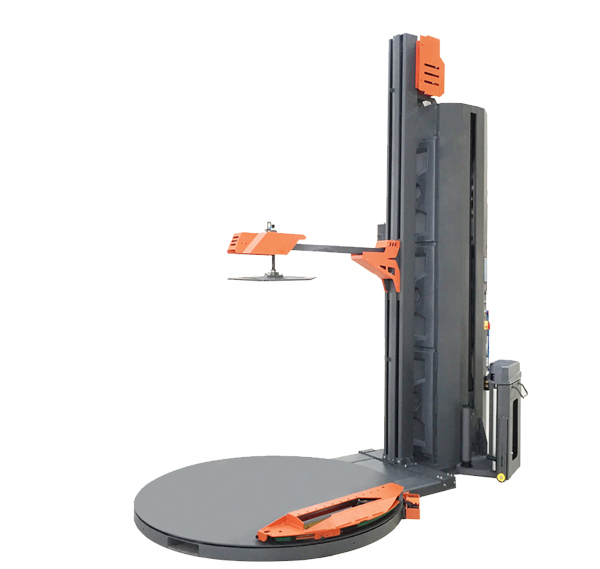

TOP PRESSURE FULLY AUTOMATIC PALLET WRAPPING MACHINE

TOP PRESSURE FULLY AUTOMATIC PALLET WRAPPING MACHINE

Availability:
Quantity:
  • FL300
  • Fillex

1. Main Performance :

1. High efficiency and low electricity-consumption, convenient in operation.
2. The wrapping type and times can be designed on customers’ requirements.
3. Photoelectric sensor test pallet height automatic
4. Auto reset of turn table
5. Pre-stretch ratio: 300%
6. Programmable control and frequency converter is available.
7.PLC control ,manual optional. Wrap cycle (top, bottom, reinforcement) adjustment.
  Variable lift speed/ film tension control. Film up/down controls.
8.Pallet wrapping machine soft start and soft stop.
9.Suitable for light and unsteady  pallet
10.automatic cut and clamp film

11.Remote control start machine

2. Technical Parameters

Feature

Main Products

Maximum Wrapping Speed

15-25 Loads/Hour

Max Wrapping Height & Weight

2200mm / 2000Kg

Turntable Speed

0-13Rpm(Adjustable)

Turntable Size

1650mm

Turntable Drive

0.75Ph Chain Drive

Clamp And Cut Film

Automatic

Machine Size

L:2800mm  W:1650mm H:3250mm

Machine Weight

800Kg

Standard Pre-Stretch

300% Pre-Stretch

Film Capacity

250mm Diameter

Standard Film Width

500mm

Film Delivery System

Power Pre -Stretch

Packing Force

Changeable

Intelligent-Sensor

Standard

Rope Grip System

Optional

Safety Device

Ce Standard

Alarm System

Have

Top Pressure

Motor Drive/600-2200mm Press Height

Ramp

Optional
