JUICE FILLING LINE

Juice Filling Production Line use for produce different kinds of bottle juice, juice with pulp, tea, energy drink and etc. We supply the complete line with water treatment system, juice processing system, filling and packaging system, our product including juice filling line for glass bottle, fully automatic juice filling line, high speed juice filling line.


THE PROCESS FLOW

Production Line

CAD Configuration

JUICE LINE ADVANTAGE



01

SAUTOMATIC PRODUCTION LINE
High speed automatic juice filling production line, stable performance, safe and reliable, simple operation, but also high output, low price.






02

CONVENIENT BOTTLE CHANGE

Suit for a variety of special-shaped bottles, and it is convenient and quick to change the bottle type.






03

SPECIALIZED CONSULTATION

Fillex helps customers realize and surpass their dreams according to their actual conditions and product characteristics.






04

ATER-SALE SERVICE

Good after sale service, quick response to ensure customer normal production.

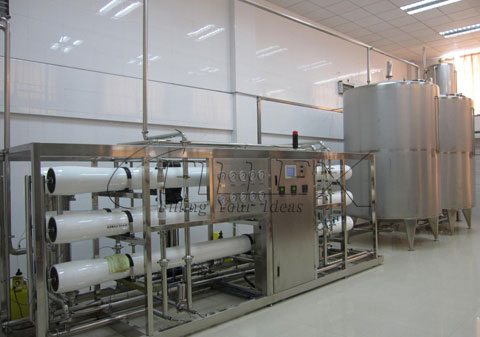

01 . Water Treatment System

1-water-treatment-system

RO is a technique of separating solutes from solvents of the same solution by means of selection and interception by the semi-permeable membranes, when driven by pressure.Use of reverse osmosis technology can effectively remove dissolved salts, colloids, bacteria, viruses, bacterial toxins and most organic matter and other impurities, desalination rate is generally 98% or more. RO reverse osmosis equipment has the advantages of energy saving, environmental protection, continuous and stable operation of the process, small size, simple operation, strong adaptability.


02 . Juice Processing System

juice processing system

  Blending system refers to the equipment combination that the various raw and auxiliary materials and process water are extracted or dissolved by various process units according to the pre-determined process parameters, and then mixed and fixed to obtain semi-finished products; its main modules include hot water unit, saccharose filter sterilizing unit, juice/tea powder reconstitution unit, auxiliary material dissolving unit, tea extracting and filtering unit, powdered milk reconstitution mixing unit, blending constant volume unit, CIP cleaning unit, pipe unit, electrical control and central control units.


03 . Bottle Blow Moulding System

Bottle blow molding machine

  The bottle blow molding machine has the advantages of small area, high energy efficiency and high productivity per unit time. The device for conveying bottle embryo to heating and extending blow out molding adopts linear mechanism. Blow molding machine is controlled by man-machine interface, simple operation, modular design and easy maintenance. blow molding machine can save cost and increase competitiveness.


04 . Filling System

soluJuice_img4

Juice Filling Machine works harmoniously with air-conveyor belt. It holds the bottles by the neck when transporting. Juice Filling Machine is used to fill juice into pet bottle and with screw caps capping function...


05 . Labeling System

soluJuice_img5

Fillex has different types of labeling machines. Automatic shrink sleeve labeling machine, sticker labeling machine, hot glue opp labeling machine. The capacity from 2000bph up to 30000bph...


06 . Packing System

soluJuice_img6





  It is widely used in the combination packaging of beverage, food, pharmaceutical and chemical products. No matter whether it is square, round, or flat, it can be packaged and has excellent visual effects. It is the preferred matching equipment for beer and beverage filling production lines.



  This machine adopts multi-axis servo motor synchronous control technology, film cooling technology, film tension control technology and bottle pressure-free control technology.




07 . Palletizing System

soluJuice_img7


  It is used in the industries of beer food and beverage, the chemical, etc., to stack various types of bottles and bags.



With a small occupied area, easy adjustment and large production capacity, it is particularly suitable for space-constrained layout plans and is suitable for a variety of fascia boards and boxes. The change of production line only needs to modify the software program.  Flexible handling and handling can simultaneously ensure the operation of multiple production lines.



08 . Conveyor System

soluJuice_img8
  Modular design has been used for the conveyor belt structure, which is compact, low-noise, and convenient in installation and maintenance. It is easy to replace the components. It is flexible to combine each part together according to different capabilities, bottle types.

  The control method can be designed according to the customer’s floor plan requirements, and the required electrical control elements can be selected to further improve the smoothness of the delivery.





CUSTOMER TESTIMONIAL

5000bph@500ml Juice Production Line

Country: Turkey
Customer: Mr Yilmaz
In 2015, we installed a juice production line in Turkey. This is the first time for Mr Yilmaz to do beverage business. Thus we helped him step by step to complete the whole factory. Now customer has good market in local.
