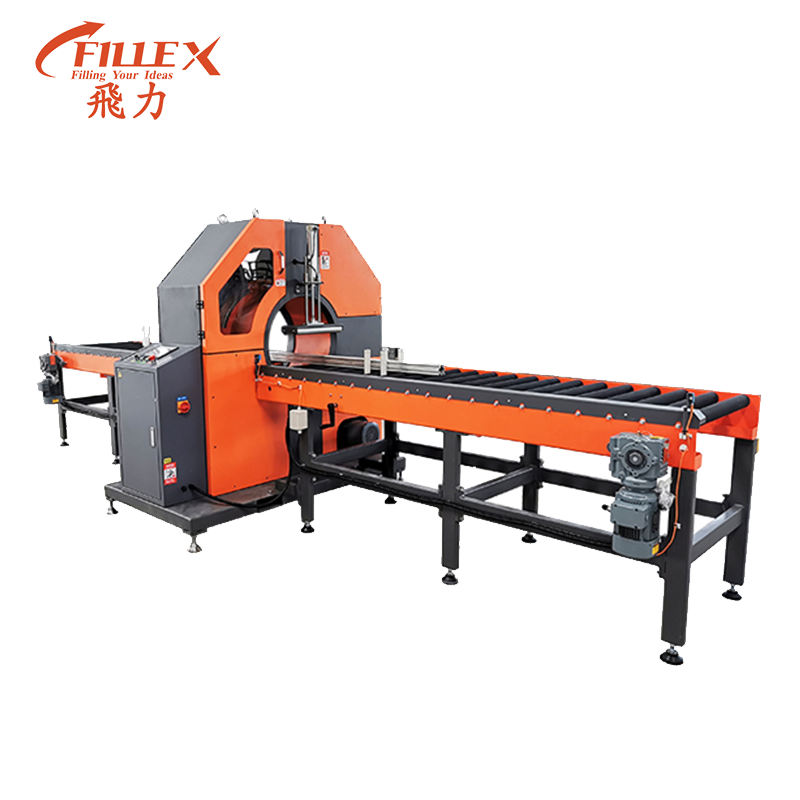

FL600
Main Performance :
1. High efficiency and low electricity-consumption, convenient in operation.
2. The wrapping type and times can be designed on customers’ requirements.
3. Photoelectric sensor test pallet length automatic
4. Programmable control and frequency converter is available.
5. PLC control
6. Pallet stretch wraping machine soft start and soft stop.
7. Suitable for pack wooden ,aluminum ,pipe and all long products
8. Fully automatic cut and clamp film
Technical Parameters
Model | FL600 | Special requirements | Introduction | |
Maximum wrapping size | 0.5*0.5 m (WXH) 800mm(Diameter) | Input and output conveyor | Roller conveyor | |
Ring speed | 0-30r/min | |||
Ring diameter | 800mm | |||
Maximum loading weight | 500KG | |||
Output height | 800mm | |||
Motor drive | 1.5KW | |||
Put film & cut film | Automatic | |||
Film | LLDPE | |||
Film Width | 250mm | Conveyor width | 700mm | |
Input conveyor | 7m input roller conveyor | Max load | 50KG/M | |
Output conveyor | 7m output roller conveyor | |||
Guide rail | Included | |||
Control type | PLC | |||
Satety door | Included | |||
Machine Weight | 600KG | |||
Machine Size | L:14950mm W:2460mm H:2550mm | |||
Language | According to customer requirments | |||
Voltage | 380V/220V/110V/50HZ /60HZ 1 P/3P |
New design & advanced technology
FL600 horizontal winding machine is the latest research and development product of Bumblebee, the technology is in the leading level in the world.

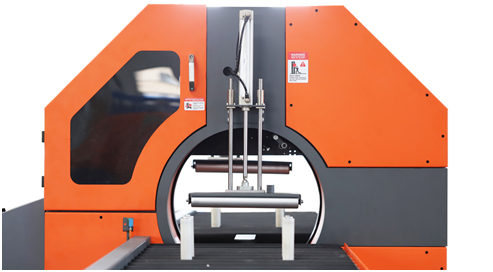

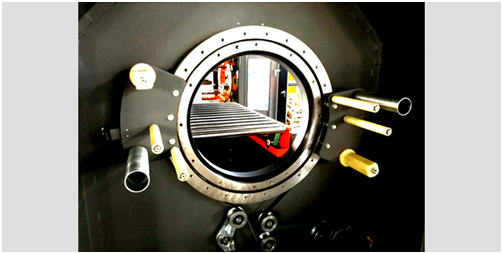

Rotary bearing ring system
Using rotary bearing ring system, low noise, small vibration, no maintenance later.
Double film frame, automatic film cutting system
The FL600 is equipped with two film racks to increase packaging speed by 50% and adopt automatic film cutting system.

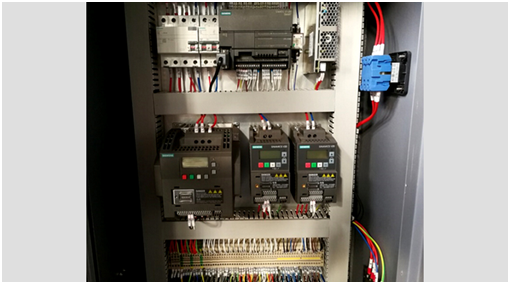

Siemens control system
All electrical components installed by the wasp online winding machine, do not use a separate control box, so that it is much easier to install.
All the electrical parts of the Hornet use Siemens, Omron and other top brands. Good spare parts are very important to the quality of the machine.
Company
Packing & Shipping
FAQ
Q1: Are you a trading company or a manufacturer?
A1: We have our own factory for many years,can give u best service.
Q2: What's your guarantee if we buy your machines?
A2: We offer you high quality machines with 1 year guarantee and free spare parts for 1 year. Meanwhile our engineers have rich experience and have gone to more than 50 countries for installation and commissioning.
Q3: When can I get my machine after I paid?
A3: We will deliver the machines on time as the date we agreed both side.
Q4: How can I install my machine when it arrives?
A4: Our engineer will go to your side as soon as you get your machines ready for testing and teaching your technicians how to run the machines.
Q5: What's the delivery time?
A5: 30-45 days after the T/T deposit or L/C.
Q6: Do you provide customized service?
A6: We can design the machines according to your requirements (material, power, filling type, container and etc), at the same time we will give you
professional suggestion by many years industrial experience.
