1.Pallet wrap machine use LLDPE stretch film as the main packing material to wrap the bulk cargos stacked on the pallet
2.Film provides extra support during transportation and storage to protect them from dust, moisture or damage
3.The pallet wrap machine has been widely used in industries such as glassware, tools, electric & electronic, paper,pottery, food & beverage, etc.
Availability: | |
---|---|
Quantity: | |

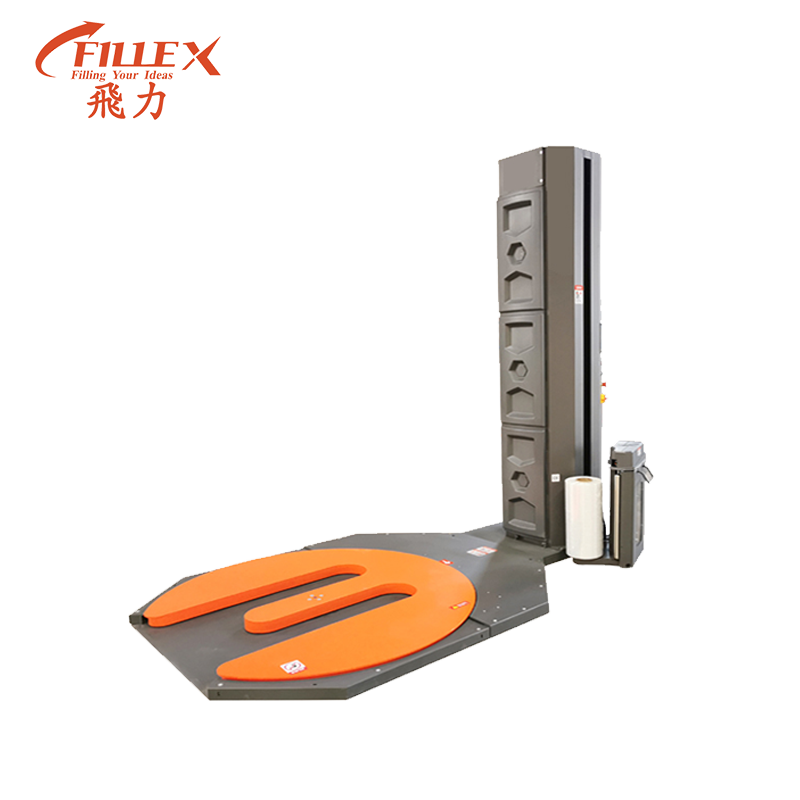

FL-M5
Fillex
1. Product Application:
1.Pallet wrap machine use LLDPE stretch film as the main packing material to wrap the bulk cargos stacked on the pallet
2.Film provides extra support during transportation and storage to protect them from dust, moisture or damage
3.The pallet wrap machine has been widely used in industries such as glassware, tools, electric & electronic, paper,pottery, food & beverage, etc.
2. Main Features
1. High efficiency and low electricity-consumption, convenient in operation.
2. The wrapping type and times can be designed on customers’ requirements.
3. Photoelectric sensor test pallet height automatic
4. Auto reset of turn table
5. Pre-stretch ratio: 300%
6. Programmable control and frequency converter is available.
7.PLC control ,manual optional. Wrap cycle (top, bottom, reinforcement) adjustment.
Variable lift speed/ film tension control. Film up/down controls.
8.Pallet wraping machine soft start and soft stop.
9.Suitable for light pallet
10.Remote control sytem ,fully automatic
11.E type turntable ,easy for pallet jack load the pallet on machine
3. Technical Parameters
Pallet Size | 2700*1650*2675mm |
Turntable Diameter | 1650mm |
Turntable Load-Bearing | ≤800KG/2400mm |
Weight | 850KG |
Dimension | 2650*1650*2350mm |
Applicable Film | Width 500mm, thickness 18-25 μ, outer diameter 220mm, inner diameter 76mm, weight 15KG/roll, stretching ratio: 200% |
Turntable Speed | 0-12RPM(adjustable) |
Voltage | 220V/110V/50HZ |
Safety Device | Have |
Alarm System | Have |
Pallet Jack for Size | 1200*750mm |
1. Product Application:
1.Pallet wrap machine use LLDPE stretch film as the main packing material to wrap the bulk cargos stacked on the pallet
2.Film provides extra support during transportation and storage to protect them from dust, moisture or damage
3.The pallet wrap machine has been widely used in industries such as glassware, tools, electric & electronic, paper,pottery, food & beverage, etc.
2. Main Features
1. High efficiency and low electricity-consumption, convenient in operation.
2. The wrapping type and times can be designed on customers’ requirements.
3. Photoelectric sensor test pallet height automatic
4. Auto reset of turn table
5. Pre-stretch ratio: 300%
6. Programmable control and frequency converter is available.
7.PLC control ,manual optional. Wrap cycle (top, bottom, reinforcement) adjustment.
Variable lift speed/ film tension control. Film up/down controls.
8.Pallet wraping machine soft start and soft stop.
9.Suitable for light pallet
10.Remote control sytem ,fully automatic
11.E type turntable ,easy for pallet jack load the pallet on machine
3. Technical Parameters
Pallet Size | 2700*1650*2675mm |
Turntable Diameter | 1650mm |
Turntable Load-Bearing | ≤800KG/2400mm |
Weight | 850KG |
Dimension | 2650*1650*2350mm |
Applicable Film | Width 500mm, thickness 18-25 μ, outer diameter 220mm, inner diameter 76mm, weight 15KG/roll, stretching ratio: 200% |
Turntable Speed | 0-12RPM(adjustable) |
Voltage | 220V/110V/50HZ |
Safety Device | Have |
Alarm System | Have |
Pallet Jack for Size | 1200*750mm |
