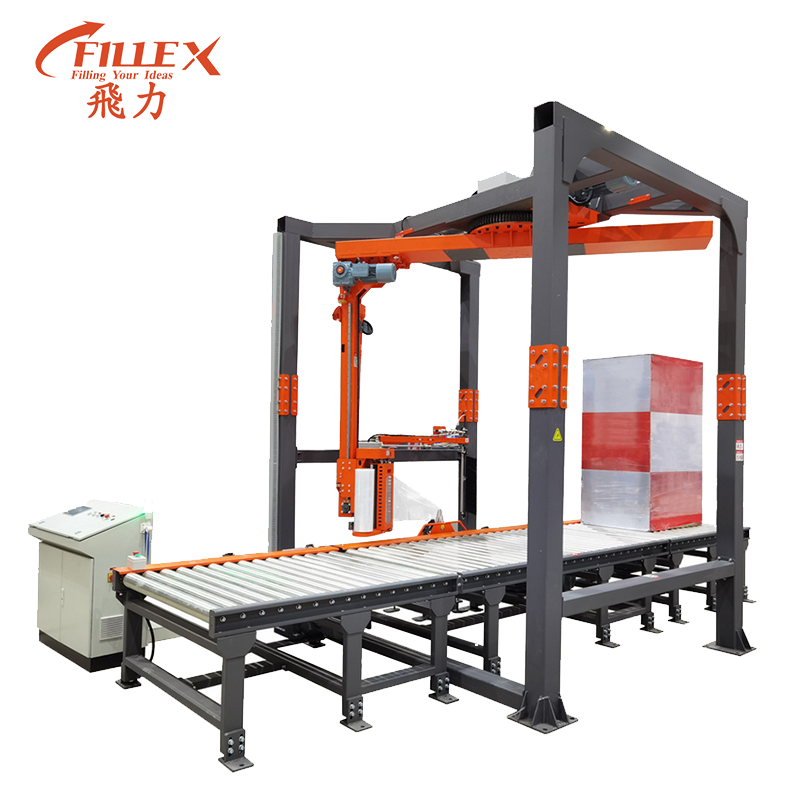

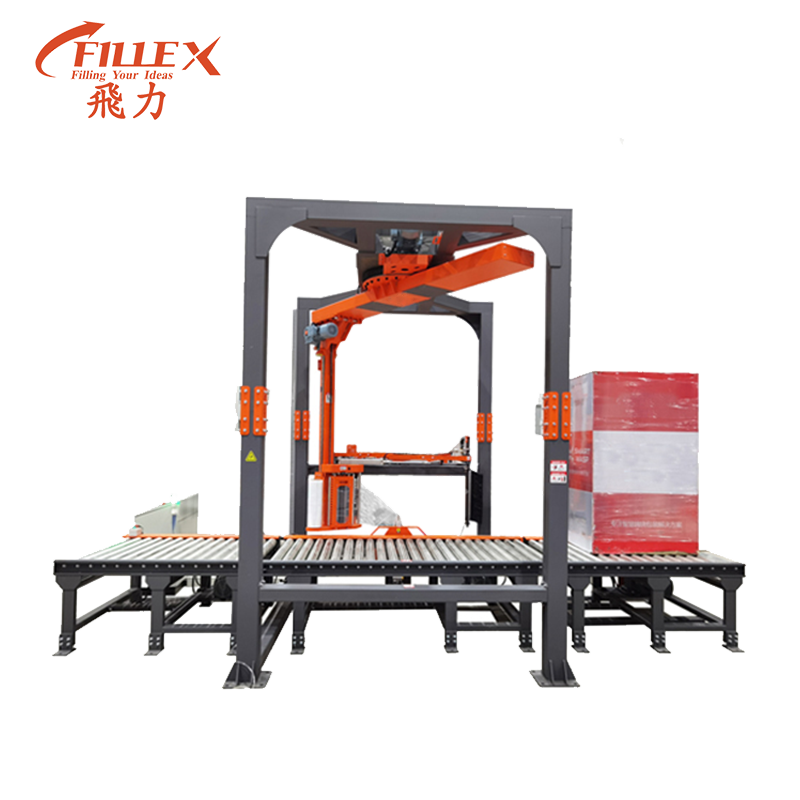

Rotary Arm Pallet Wrapping Machine Fulliy Automatic

Availability:
Quantity:
  • FL1000

T1000悬臂缠绕机

Main Performance

1. Wrapping speed from 30-35 pallet /H

2. Automatic top sheet dispenser optional

3. Automatic paper corner fixer optional

4. Auto cutting and clamping film

5. SEW & SIEMENS motor drive system


Specifications

MODEL

FL1000

PARTS

Brand

Maximum wrapping speed

35-40 loads/hour

Inverter

SIEMENS

Max pallet size

1.2x1.2m

Position sensor

SICK

Maximum Wrapping Height

2000mm

PLC

SIEMENS

Ring Speed

0-30RPM(Adjustable)

Travel Switch

OMRON

Ring Size

2000mm

Ring drive Motor

JSK

Ring Drive Power

1.5PH

Relay

OMRON

Film &Clamp Cut

Automatic (Heat type)

Touch screen

SIEMENS

Standard Film Width

500mm

Switch

Schneider

Constant Film Delivery Force

Standard

Cylinder

AIRTAC

Standard Pre-Stretch

250%

Up and down motor

JSK

Film Capacity

Diameter: 250mm



Top pressure function

Optional



Lifting  up conveyor

Optional

Special Process

Introduction

Top sheet dispensor

Optional

Frame

Steel

Paper corner fixer

Optional

Printing

Metallic Paint

Machine Size

3825*2900*3940mm

Cutting

Laser

Machine weight

2000KG



Voltage

380V/60HZ



1639703369(1)

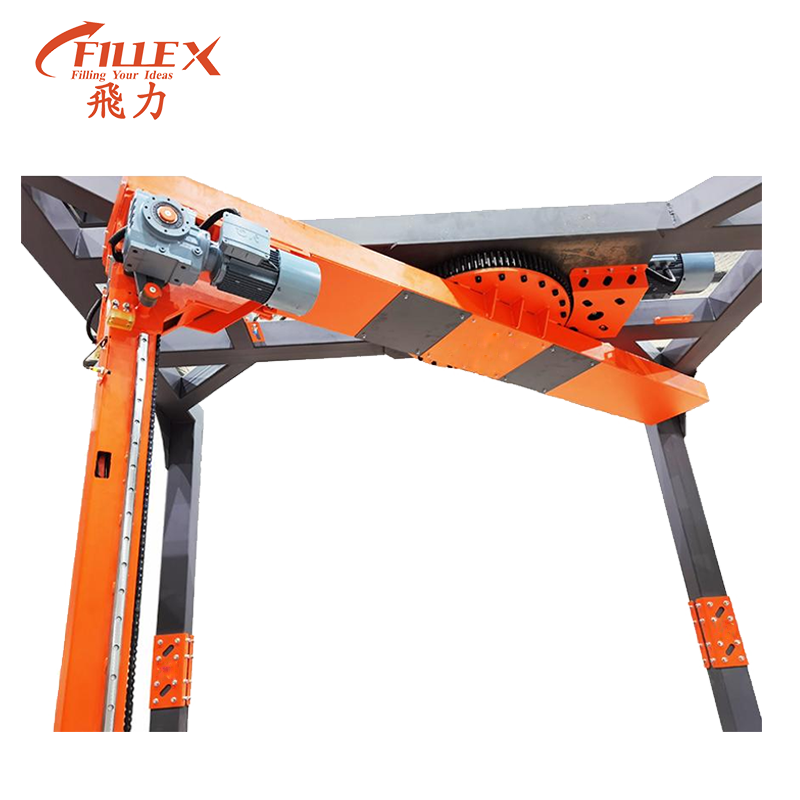

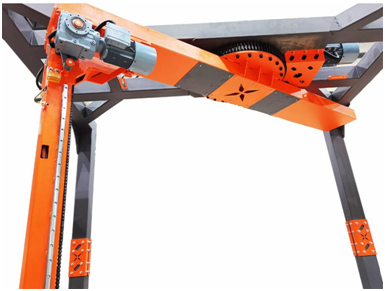

A more stable

Transmission mode: slewing bearing.


No noise, long service life, no maintenance, no need to increase the weight.


1639703480(1)

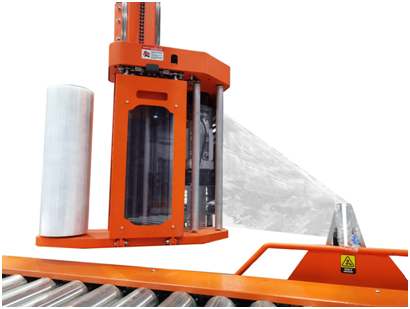

A more thorough

Pure mechanism cutting film mode

100% don't float membrane

Full mechanical film breaking

In ring packaging, during the packaging process, the pallet avoids falling. When the ring moves, the pallet is on the conveyor belt, so the packaging is more stable.





1639703552(1)



A more secure


Increased more active safety protection, improve the performance of passive safety.


Emergency stop machine operation, rotating distance reduced by 75%, lifting distance reduced by 90% :


The machine plate pad does not pass if it exceeds the packaging height of the equipment. If it does not reach the packaging height, it is released directly.




1639703626(1)

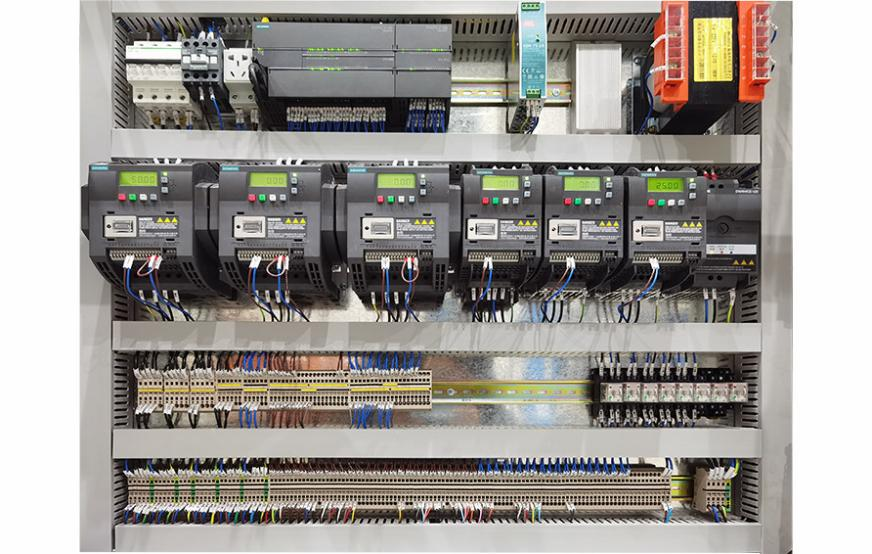

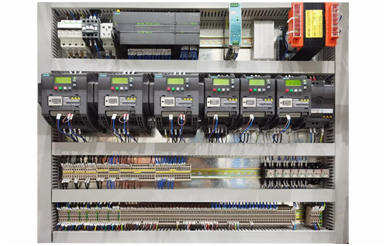

Better spare parts

Thicke close, photoelectric switch

Weidmuller terminal block

Siemens PLC

Siemens inverter
