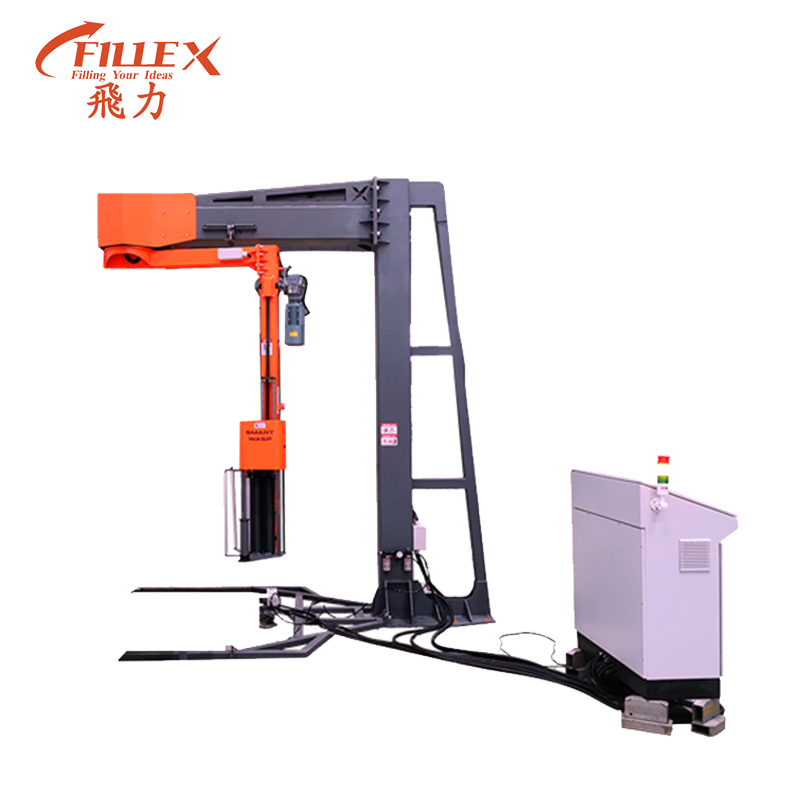

Single Cantilever Type Intelligent Wrapping Machine

Availability:
Quantity:
  • FL1000mp

T1000mp单悬臂缠绕机




Technical Parameters


Wrapping Speed

30-35 loads /hour

Maximum Load

2000KG

Package Size

1.2*1.2m

Film Size

500mm

Package Height

2000mm

Automatic Film Cutting

Automatic, Heating

Rotate Speed

3-12 RPM(Adjust)

Size

2*1*2.4m

Ring Diameter

2000mm

Weight

2000KG

Power

1.5SPH

Valtage

380V/60HZ

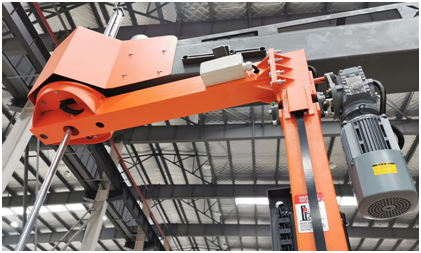

1639806587(1)


A more stable

Transmission mode: slewing bearing.

No noise, long service life, no maintenance, no need to increase the weight.

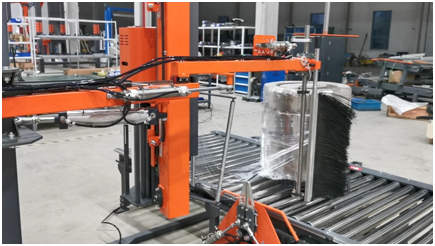

1639806629





A more thorough

Pure mechanism cutting film mode

100% don't float membrane

Full mechanical film breaking

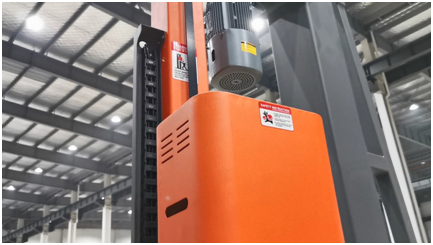

1639806675(1)

A more secure


Increased more active safety protection, improve the performance of passive safety.


Emergency stop machine operation, rotating distance reduced by 75%, lifting distance reduced by 90% :


The machine plate pad does not pass if it exceeds the packaging height of the equipment. If it does not reach the packaging height, it is released directly.


When the film is changed, the equipment is automatically protected and cannot be started.

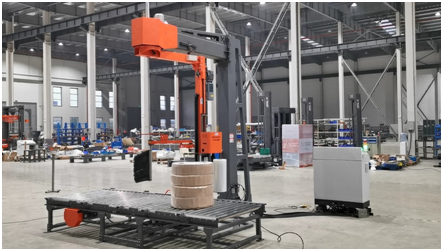

1639806729(1)


More simple


Mechanism modular design, each part has her ID number;


Single parts can be easily replaced, or the whole part can be directly upgraded to a new generation of products.


Electrical modular design, docking with the front and rear systems is more convenient and simple.


Visual man-machine interface, simple operation, easy to understand.



Company

photobank

Packing & Shipping


photobank (1)

FAQ
Q1: Are you a trading company or a manufacturer?
A1: We have our own factory for many years,can give u best service.

Q2: What's your guarantee if we buy your machines?
A2: We offer you high quality machines with 1 year guarantee and free spare parts for 1 year. Meanwhile our engineers have rich experience and have gone to more than 50 countries for installation and commissioning.

Q3: When can I get my machine after I paid?
A3: We will deliver the machines on time as the date we agreed both side.

Q4: How can I install my machine when it arrives?
A4: Our engineer will go to your side as soon as you get your machines ready for testing and teaching your technicians how to run the machines.

Q5: What's the delivery time?
A5: 30-45 days after the T/T deposit or L/C.

Q6: Do you provide customized service?
A6: We can design the machines according to your requirements (material, power, filling type, container and etc), at the same time we will give you
professional suggestion by many years industrial experience.
