Plate Heat Exchanger  Plate Heat Exchanger

Normal cooling and heating in dairy, brewage, beverage, food industries, etc Heating and cooling in pharmaceutical industry

Quantity:
Share this:

Product Description

Plate Heat Exchanger :

  The plate heat exchanger equipment is one of the latest equipments in the field of heating and cooling. It has the advantages of compact structure, small floor space, high heat transfer efficiency, convenient operation and maintenance, and the ability to handle small temperature differences. As a kind of high-efficiency energy-saving product, plate heat exchanger has been widely used in various industrial fields such as mining, metallurgy, petroleum, chemical, machinery, textile, papermaking, shipbuilding, marine development, etc. In recent years, it has been in the centralized heating and cogeneration industry. The promotion in China is particularly rapid.


Features


Functions and features:

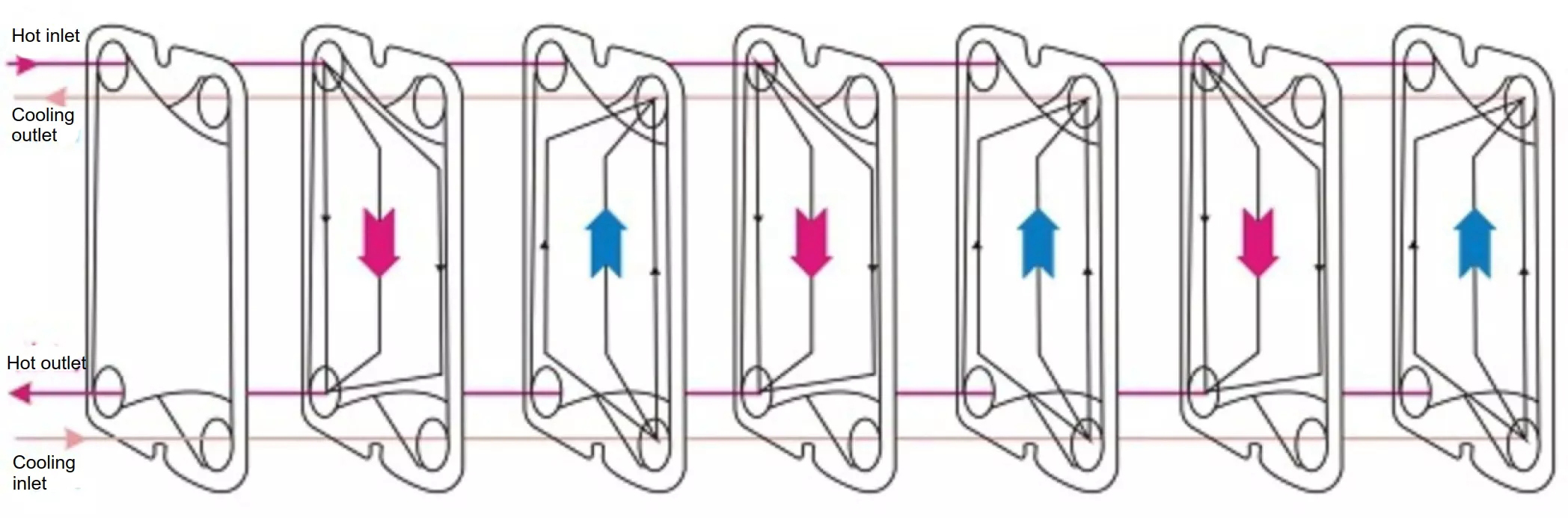

1.high heat transfer coefficient: the special corrugated design on the heat transfer plate can make the fluid produce strong turbulence at a very low velocity, and the self-cleaning effect of turbulence can prevent the generation of dirt, so that the heat transfer coefficient of the plate heat exchanger is 3-5 times that of the shell and tube heat exchanger.

2,economy: compared with shell and tube type under the premise of the same heat exchange: less investment, low operating cost and low maintenance cost.

3,adjustability: simply add and reduce plates to meet the requirements of process changes.

4,compact structure: under the premise of the same heat transfer, the occupied space is only 1/2 l / 3 of the shell-tube type

5,easy to clean and maintain

 No

Plate Size

Channel

Heat Exchanger Area

Flow

Plate Quantity

Connection Size

(length*width*height)

(M²)

(T/H)

LN-0.06

160*500*0.5

Single Channel

1

0.5

17

32mm

LN-0.06

160*500*0.5

Double Channel

3

1.5

20+31

32mm

LN-0.13

200*800*0.4

Double Channel

5

2.5

15+24

38mm

LN-0.13

200*800*0.4

Double Channel

7

3

22+33

38mm

LN-0.13

200*800*0.4

Double Channel

10

5

31+46

38mm


Workshop Production




FAQ

Q1: Are you a trading company or a manufacturer?

A1: We have our own factory for many years, can give u best service.


Q2: What's your guarantee if we buy your machines?

A2: We offer you high-quality machines with a 1-year guarantee and free spare parts for 1 year. Meanwhile, our engineers have rich experience and have gone to more than 50 countries for installation and commissioning.


Q3: When can I get my machine after I paid?

A3: We will deliver the machines on time as the date we agreed on both sides.


Q4: How can I install my machine when it arrives?

A4: Our engineer will go to your side as soon as you get your machines ready for testing and teaching your technicians how to run the machines.


Q5: What's the delivery time?

A5: 30-45 days after the T/T deposit or L/C.


Q6: Do you provide customized service?

A6: We can design the machines according to your requirements (material, power, filling type, container and etc), at the same time we will give you professional suggestion by many years industrial experience.

×
