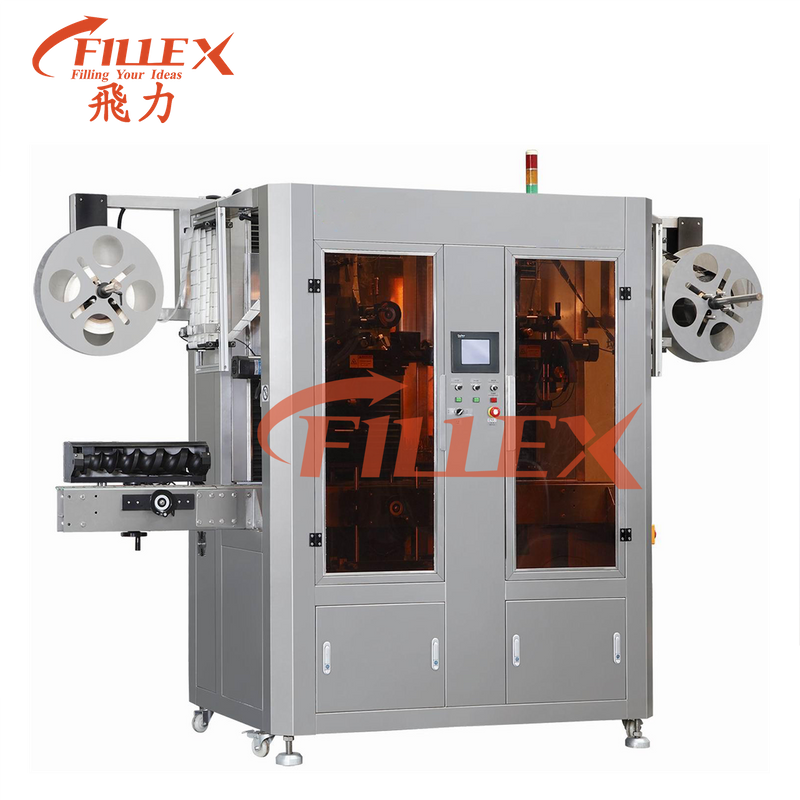

12000bph Automatic Plastic Bottle Container Shrink Sleeve Insert Labeling Machine

This Shrink Sleeve Labeling Machine adopts international advanced technology, cover the circle label on the PET bottle, and then hot shrinking to fix on the position which bottle body designated.
Availability:
Quantity:
  • SL-200
  • FILLEX
Shrink Sleeve Labeling Machine for Plastic/Glass Bottle/Can/Cup
This Shrink Sleeve Labeling Machine adopts international advanced technology, cover the circle label on the PET bottle, and then hot shrinking to fix on the position which bottle body designated. The machinery part adopts combination designing of modularization, and makes the machine reasonable. The height adjustment adopts motor fluctuating, it is convenient to replace the material. The special cutter head designing, make the film-rolling cut mor exactly and reliably.

Automatic cutting tool positioning system, Search and position automatically by touching the screen.
*A unique synchronous cutting base: The cutting base doesn't need changing within the range of specification. If the specification needs changing, it can be done within two minutes.
*Simple and safe operation: A colored people-controlling operation is used with both English and Chinese versions on it. It
needn't watching when working. An alarm instrument is installed.
*Low-consumption maintenance cost: low-cost abandoned blade for easy change
*Long use life of cutting tools: steel-connecting transmission mechanism, reciprocating cutting, prolonged use life
All 304 stainless steel construction, easy to clean Automatic cutting tool positioning system, Search and position automatically by touching the screen.
*A unique synchronous cutting base: The cutting base doesn't need changing within the range of specification. If the specification needs changing, it can be done within two minutes.
*Simple and safe operation: A colored people-controlling operation is used with both English and Chinese versions on it. It
needn't watching when working. An alarm instrument is installed.
*Low-consumption maintenance cost: low-cost abandoned blade for easy change
*Long use life of cutting tools: steel-connecting transmission mechanism, reciprocating cutting, prolonged use life
All 304 stainless steel construction, easy to clean

Model


SL-100


Labeling Speed ( capacity)


6000 bottles per hour


Suitable to Bottle Diameter


25 ~ 125 (mm)


Suitable to Bottle Height


15~320(mm)


Suitable to Label length


35~200mm (max)


Label thickness


0.035~0.08mm


Paper pipe interior diameter


3~10mm adjustable


Machine Dimension


2100(L)* 850(W) * 2000(H) mm


Net Weight


400kgs


Power Supply


380V 50HZ Three Phase


Consumption Power


20 kw

 872ef2b76fec589c93bae612f8a5f0f

9a5627d5c9d5408be473dc0fc8d9790d01b97098a0b9e9982c1a7dfa241bc16023b52e1cff4549f92cc333a46cd82



Q1: Are you a trading company or a manufacturer?

A1: We have our own factory for many years,can give u best service.


Q2: What's your guarantee if we buy your machines?

A2: We offer you high quality machines with 1 year guarantee and free spare parts for 1 year. Meanwhile our engineers have rich experience and have gone to more than 50 countries for installation and commissioning.


Q3: When can I get my machine after I paid?

A3: We will deliver the machines on time as the date we agreed both side.


Q4: How can I install my machine when it arrives?

A4: Our engineer will go to your side as soon as you get your machines ready for testing and teaching your technicians how to run the machines.


Q5: What's the delivery time?

A5: 30-45 days after the T/T deposit or L/C.


Q6: Do you provide customized service?

A6: We can design the machines according to your requirements (material, power, filling type, container and etc), at the same time we will give you professional suggestion by many years industrial experience.
