Double Heads Shrink Sleeve Labeling Machine

Double Labeling Head shrink sleeve labeling machine mainly used in water and beverage production line for sleeve labeling both container body and caps as tamper evident band on same machine after filling process. It

  • SL-100D

This machine adopts international advanced technology;cover the circle label on the PET bottle.And then hot shrinking to fix on the position which bottle body designated.
The machinery part adopts combination designing of modularization,and makes the machine reasonable.The height adjustment adopts motor fluctuating;it is convenient replace the material.The special cutter head designing,make the film-rolling cut more exactly and reliably.

About Labeling Station
  • Synchronized transmission and drive by gear with one belt.

  • The new style cutting knife droved by servo motor, with high speed, more stable and precise

  • Synchronous locating device enables the tolerable error to1mm .

  • Single material shelf with reasonable height in order to make it convenient to install label.

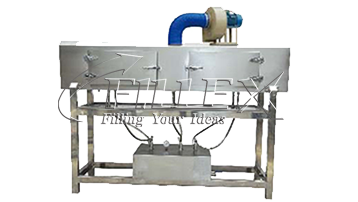

About Tunnel System
  • Wide range of applications for round bottle, square bottle, flat bottle etc.

  • 304 stainless steel shell, split design .

  • Water does not rust, structural stability.

  • Seamless steel design, low pressure steam jet steam points the way.

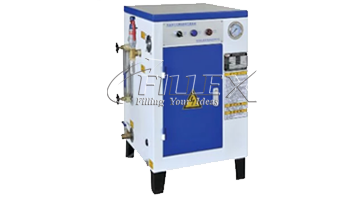

About Steam Generator
  • Compact, lightweight H-type design, won a number of national patents.

  • High thermal efficiency, rapid warming, thus saving energy and operating costs.

  • A high degree of automation, fuzzy control module, a great convenience for users.

  • Modular design, demolition convenient, user-friendly maintenance


Capacity 3,0006,0009,000
Container Diameter                                             28mm-120mm
Length of Label                                               30mm-250mm
Label Thickness                                             0.03mm-0.13mm
Weight (KG)100450550

1. Advanced technology: Schneider servo motor controls synchronous cutting system to ensure long use life of cutting tool and high precision label.
2. Highly effective production speed: 150bottles/per minute (standard bottle) It can work with the production line or just work alone , labeling speed can be adjusted to 600bottles per minute.
3. Construction: Stainless steel housing, easy to handle and move with sliding wheels in  the bottom.
4. Elastic choice: The machine head can be leaned to fit round bottle, square bottle, elliptic bottle, top of bottle and body of bottle. The latest double material-providing system is applied to change material alternately with less time.
5. A unique synchronous cutting base: The cutting base doesn't need changing within the range of specification.
6. Simple and safe operation: A colored people-controlling operation is used with both English and Chinese versions on it.
7. Low-consumption maintenance cost: low-cost abandoned blade for easy change.
8. Long use life of cutting tools: steel-connecting transmission mechanism, reciprocating cutting and prolonged use life.


Q1: Are you a trading company or a manufacturer?

A1: We have our own factory for many years,can give u best service.

Q2: What's your guarantee if we buy your machines?

A2: We offer you high quality machines with 1 year guarantee and free spare parts for 1 year. Meanwhile our engineers have rich experience and have gone to more than 50 countries for installation and commissioning.

Q3: When can I get my machine after I paid?

A3: We will deliver the machines on time as the date we agreed both side.

Q4: How can I install my machine when it arrives?

A4: Our engineer will go to your side as soon as you get your machines ready for testing and teaching your technicians how to run the machines.

Q5: What's the delivery time?

A5: 30-45 days after the T/T deposit or L/C.

Q6: Do you provide customized service?

A6: We can design the machines according to your requirements (material, power, filling type, container and etc), at the same time we will give you professional suggestion by many years industrial experience.
