SL-200
FILLEX
8422301090
Product Description

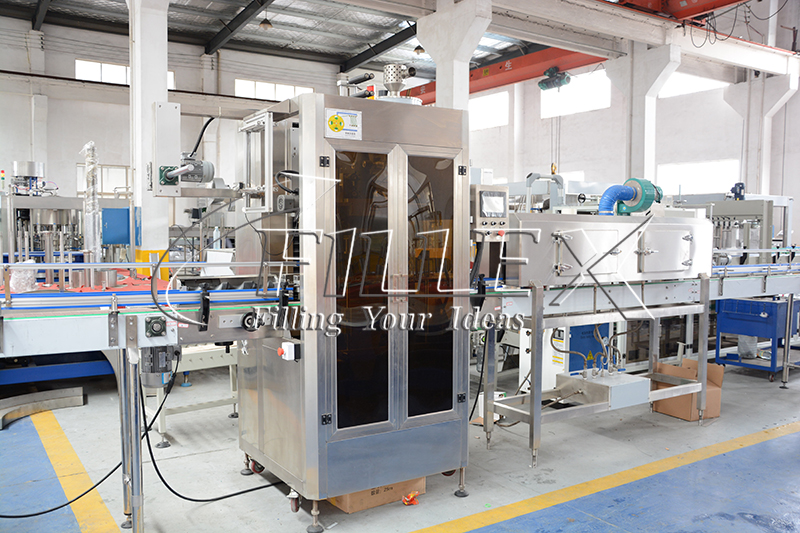

The machine adopts international advanced technology; cover the circle label on the pet bottle.
And then hot shrinking to fix on the position which bottle body designated.
This machine's structure is compact, and suitable for the production line of different direction and different height.
The machinery part adopts combination designing of modularization, and makes the machine reasonable. The height adjustment adopts motor fluctuating; It is convenient to replace the material. The special cutter head designing, make the film-rolling cut more exactly and reliably.
Synchronized transmission and drive by gear with one belt.
The new style cutting knife droved by servo motor, with high speed, more stable and precise .
Synchronous locating device enables the tolerable error to1mm .
Single material shelf with reasonable height in order to make it convenient to install label.
Technical Parameter
| Model | SL-50 | SL-100 | SL-150 | SL-250 | SL-350 | SL-400 |
| Capacity | 3,000 | 6,000 | 9,000 | 15,000 | 21,000 | 24,000 |
| Container Diameter | 28mm-120mm | |||||
| Length of Label | 30mm-250mm | |||||
| Label Thickness | 0.03mm-0.13mm | |||||
| Dimension(mm) | 600*750*1800 | 2440*950*2100 | 2440*950*2100 | 2440*1000*2200 | 2440*1000*2200 | 2440*1000*2200 |
| Weight(kg) | 100 | 450 | 550 | 600 | 700 | 750 |
Product Description
The machine adopts international advanced technology; cover the circle label on the pet bottle.
And then hot shrinking to fix on the position which bottle body designated.
This machine's structure is compact, and suitable for the production line of different direction and different height.
The machinery part adopts combination designing of modularization, and makes the machine reasonable. The height adjustment adopts motor fluctuating; It is convenient to replace the material. The special cutter head designing, make the film-rolling cut more exactly and reliably.
Synchronized transmission and drive by gear with one belt.
The new style cutting knife droved by servo motor, with high speed, more stable and precise .
Synchronous locating device enables the tolerable error to1mm .
Single material shelf with reasonable height in order to make it convenient to install label.
Technical Parameter
| Model | SL-50 | SL-100 | SL-150 | SL-250 | SL-350 | SL-400 |
| Capacity | 3,000 | 6,000 | 9,000 | 15,000 | 21,000 | 24,000 |
| Container Diameter | 28mm-120mm | |||||
| Length of Label | 30mm-250mm | |||||
| Label Thickness | 0.03mm-0.13mm | |||||
| Dimension(mm) | 600*750*1800 | 2440*950*2100 | 2440*950*2100 | 2440*1000*2200 | 2440*1000*2200 | 2440*1000*2200 |
| Weight(kg) | 100 | 450 | 550 | 600 | 700 | 750 |
