Automatic 12000BPH Water Beverage Round Bottle Sleeve Shrink Labeling Machine

This Shrink Sleeve Labeling Machine adopts international advanced technology, cover the circle label on the PET bottle, and then hot shrinking to fix on the position which bottle body designated. T
Availability:
Quantity:
  • SL-200
  • FILLEX
  • 8422301090

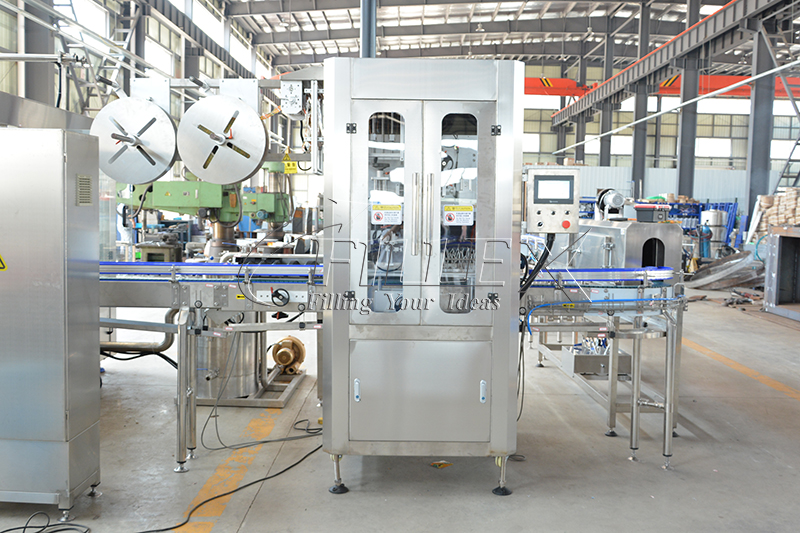

Shrink Sleeve Labeling Machine for Plastic/Glass Bottle/Can/Cup
This Shrink Sleeve Labeling Machine adopts international advanced technology, cover the circle label on the PET bottle, and then hot shrinking to fix on the position which bottle body designated. The height adjustment adopts motor fluctuating, it is convenient to replace the material. The special cutter head designing, make the film-rolling cut mor exactly and reliably.

Performance & Characteristics:
1. Whole machine adopt qualified stainless steel and good-quality of aluminum alloy , compact and reasonable fracture, convenient to adjust;
2. The label roll frame of shrinkage film with adjustable device, convenient to adjust according to differ volume label 5″~10″paper tube.
3. Simply installation, then can convenient for square and round bottle.


Label Steam Shrinking Tunnel:
1. Double layer holding furnace is manufactured to take effect on energy saving
2. The steam spray nozzle is divided to be adjustable three segments and the height, position and steam output of every segment can be adjusted respectively so as to gain the perfect shrinking effect.
3. The whole machine is made of 304 stainless steel with heat preservation
4. The stainless steel defrosting tray collects condense water.
5. The whole machine adopts the water-proof design with the convenience of operation and maintenance.

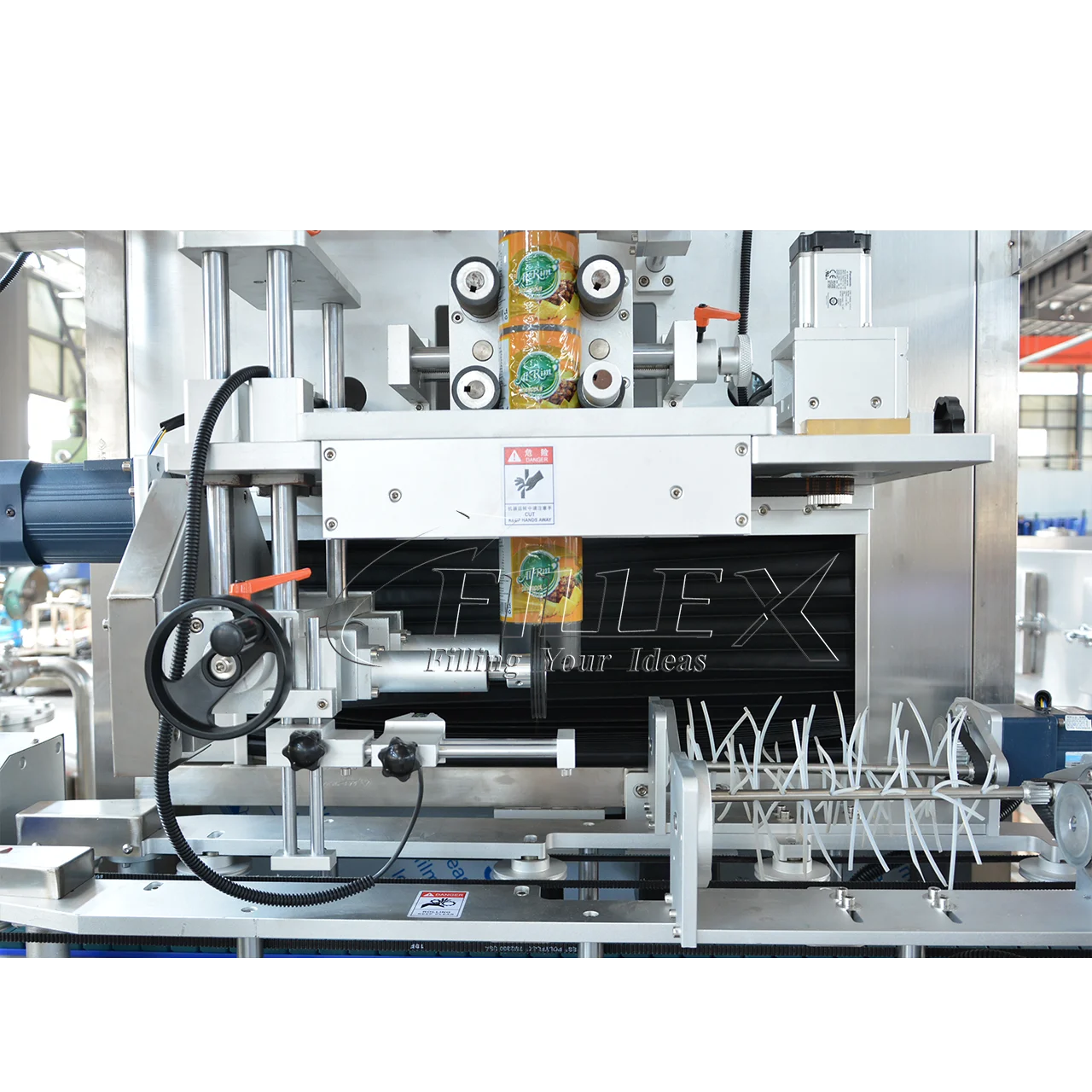

Automatic cutting tool positioning system, Search and position automatically by touching the screen.
*A unique synchronous cutting base: The cutting base doesn't need changing within the range of specification. If the specification needs changing, it can be done within two minutes.
*Simple and safe operation: A colored people-controlling operation is used with both English and Chinese versions on it. It
needn't watching when working. An alarm instrument is installed.
*Low-consumption maintenance cost: low-cost abandoned blade for easy change
*Long use life of cutting tools: steel-connecting transmission mechanism, reciprocating cutting, prolonged use life
All 304 stainless steel construction, easy to clean


Model


SL-200


Labeling Speed ( capacity)


12000 bottles per hour


Suitable to Bottle Diameter


25 ~ 125 (mm)


Suitable to Bottle Height


15~320(mm)


Suitable to Label length


35~200mm (max)


Label thickness


0.035~0.08mm


Paper pipe interior diameter


3~10mm adjustable


Machine Dimension


2100(L)* 850(W) * 2000(H) mm


Net Weight


400kgs


Power Supply


380V 50HZ Three Phase


Consumption Power


20 kw
