Air Type Water Chiller

industrial chillers are capable of controlling precisely the mold temperature in plastic molding process as so to shorten molding cycle and speed product formalization. compressed gas; stabilizes the system pressure, and the air compressor's supporting facilities,

Availability:
Quantity:

 Product Description

>Excellent cooling, quiet with low electric consumption;

>Accurately maintains temperature range from 3ºC to 50ºC;

>Single,double or quadruple compressors combination available--economical and efficient.

>Optional for RS485 communication function to realize automatic running.

>Optional refrigerant:R407C,R410A,R314A,R404A



Technical Parameter


Specifications FL-03ACl FL-05ACl FL-08ACl FL-10ACl FL-12ACl FL-15ACl
Parameter
Model
Cooling capacity Kcal/h 6800 12040 19000 25200 34400 37000
Compressor All-closed Vorticity
Compressor power Kw 2.5 4.4 7 9 10.2 13.4
Refrigerant R22
Chiler    water    pump  power Kw 0.37 0.75 0.75 1.5 1.5 1.5
Max Flow rate of chilled water L/min 55 120 120 200 200 217
Flow water inlet and outlet pipe 1″ 1.5″ 1.5″ 1.5″ 1.5″ 1.5″
Cooling fan power Kw 0.25 0.5 0.5 0.5 0.5 1
Size length (mm) 1030 1100 1220 1220 1220 1220
Size width (mm) 680 700 800 930 930 1050
Size height (mm) 1270 1400 1450 1600 1600 1600
Water tank capa L 53 88 120 200 200 240
Weight Kg 210 290 400 450 500 550

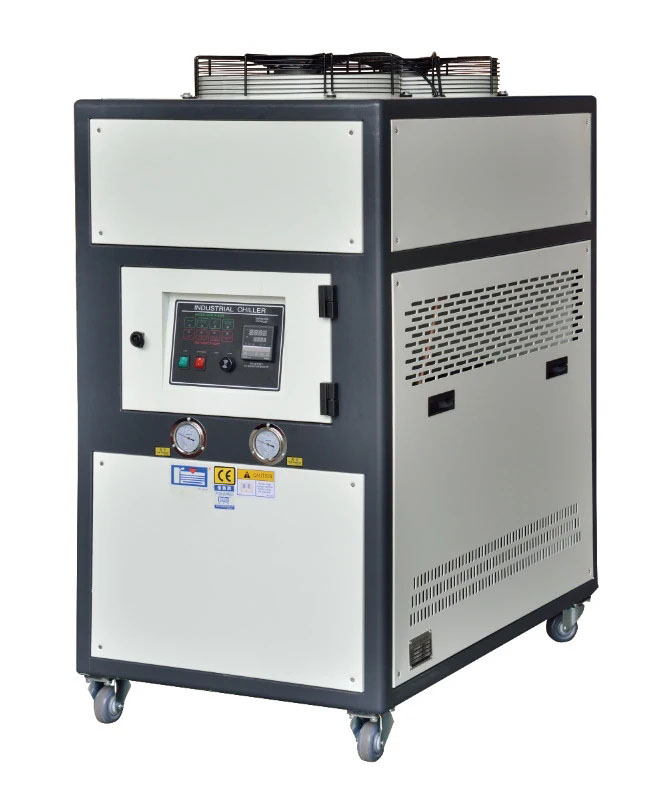

water chiller1
