Automatic Single Roll PE Film Wrapping Shrinking Machine Automatic Single Roll PE Film  Wrapping Shrinking Machine

The machine is developed for mineral water , pop-top cans ,glass bottle ,beer etc .Combination packing ,with stable function ,and the packed articles tight and orderliness .This is a fully automatic production line integrarted with such processed as automatic conveying ,feeding ,tube management ,cutting ,shrinking ,and cooling shape-fixing flow .For large collectively counted case (box or can )packing ,it is preferred to encase with PE or PVC shrinking film before shrink packaging.

Quantity:
Share this:

Product Description

Suitable for beer, beverage, juice, bottled water, dairy, condiment, etc.

Unique film unwinding device and film constant tension conveying, film instantaneous cutting, automatic lap coating, high shrinkage after shrinking

The shrinking chamber adopts a unique hot air circulation structure, the mesh belt transmission stable, the wear resistance level is high, and the service life is long.

Adopting circulating cloud wind technology, unique structure, heat insulation, high temperature control precision and good packaging effect



Technical Parameter


Model

FX-A25

FX-A35

Machine Dimension

L16685mm*W1530mm*H2500mm

L16685mm*W1530mm*H2500mm

Internal Furnace Dimension

L2400xW650xH450

L2400xW650xH450

Packing Speed

15-25(pcs/min)

30-35(pcs/min)

Work Power

380V 35KW

380V 45KW

Work Air Pressure

0.6-0.8Mpa

0.6-0.8Mpa

Air Consumption

100NL/min-120NL/min

300NL/min-400NL/min

Total Weight

4300KG

5500KG


Features

1.Unique equip with 90 degrees feeding structure.Save the occupied area space at maximum.

2.Unique master-slave motion, will push rod line change to belt main industry, the push rod and send membrane, membrane and synchronous film feeding followed to make the device processing more smoothly.

3.Unique displacement Membrane structure ,makes the circular motion of the industry into elliptical motion, thereby reducing the length of the belt, reducing the equipment space.

4.Unique analog voltage regulator technology, makes the industry SSR output become analog output, making the original on-off temperature control to automatical voltage-adjust control, and this would totally remove  elimination of the frequent off-grid impact on the grid, while effectively reduces Energy consumption.

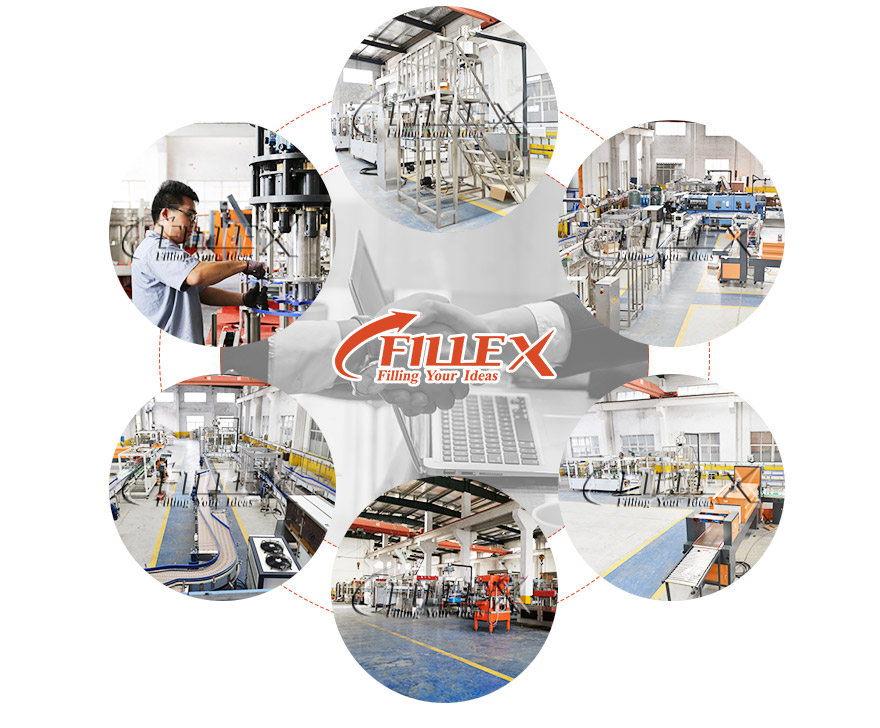

Workshop Production

Workshop Production

FAQ

Q1: Are you a trading company or a manufacturer?

A1: We have our own factory for many years,can give u best service.

Q2: What's your guarantee if we buy your machines?

A2: We offer you high quality machines with 1 year guarantee and free spare parts for 1 year. Meanwhile our engineers have rich experience and have gone to more than 50 countries for installation and commissioning.

Q3: When can I get my machine after I paid?

A3: We will deliver the machines on time as the date we agreed both side.

Q4: How can I install my machine when it arrives?

A4: Our engineer will go to your side as soon as you get your machines ready for testing and teaching your technicians how to run the machines.

Q5: What's the delivery time?

A5: 30-45 days after the T/T deposit or L/C.

Q6: Do you provide customized service?

A6: We can design the machines according to your requirements (material, power, filling type, container and etc), at the same time we will give you professional suggestion by many years industrial experience.

×
