Carbonated Drink Can Filling And Sealing Machine

Cans filling and sealing machine is introduced from Germany company Angelus advanced technology, after digestion and absorption, self-designed and manufactured, it can be widely used in cans beer, beverages, mineral water filling and sealing. The machine has changed the traditional.

Two divided machine model, adopting two in one together way to make structure tight, operation stable, attractive appearance.This machine is mainly used for filling and capping pop cans Non-carbonated beverage .

It adopts counter pressure principle with high-precision mechanical valve, high speed filling, high precision liquid level, no cans no filling. It has guiding devices with filling valve mouth to ensure the stability maximum from cans in and out filling machine. The filling tank adopts automatic lifting support method with worm gear box, to meet the different height of the cans.


Technical Parameter:

Model  12-4 18-4 24-4 30-5 36-5 48-6 72-8
Production Capacity 5,000CPH 8,000CPH 13,000CPH 10,000CPH 22,000CPH 26,000CPH 36,000CPH
Can Available

                                                Φ52.5~99mm  H39~160mm

Power (KW) 2.2 3 4 5.5 7.5 10 13
Dimwnsion (mm) 2700*1400*1900 2750*1750*1900 2750*2150*1900 3150*2150*1900 3750*2350*1900 4150*2750*1900 5500*3050*1900

Carbonated Drink Can Filling Machine

About Washing Station
  • The machine consists of a box, slide and spray device and other components.

  • In the first paragraph after through the slide rails the empty Can upside down.

  • In the third paragraph, empty cans are drained in the slide rail.

About Filler Station
  • Cans filling and sealing machine is introduced from Germany company Angelus advanced technology.

  • Two divided machine model, adopting two in one together way to make structure tight, operation stable, attractive appearance.

  • It adopts the counter pressure principle with a high-precision mechanical valve

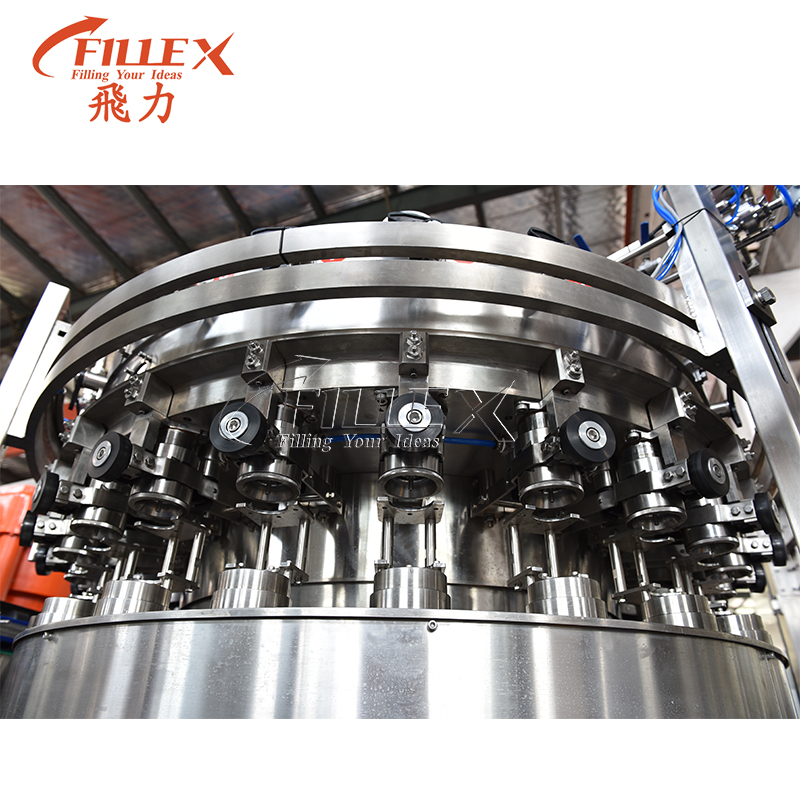

can fill
About the Capper
  • Filling and sealing are overall designed.

  • For the mouth of a can. No leakage. Precise movements.

  • All 304 stainless steel construction

  • No bottle no caps delivery.

  • Automatic stop when lack of can

can capper


- Adaptable for filling in different kinds of carbonate drink

-Two time air exhaust, extend the shelf life by reduce the remaining oxygen

-Isobaric Filling, the filling volume error is less than 1%

-Can size widely adopted, easy to change the mold

- Easy to adjust the height of filling tank

- The seaming wheel is customized according to the client’s can size to ensure the perfect seam with no leak and scratch.

- Adapt Heavy bearings and extend the life of machine to at least 10 years

-Use high-quality component – Siemens PLC, Omron proximity switch.

- Adjustable in Production speed with automatic alarming system, PLC can judge whether to stop the machine

- All gears are grinded and heat treated with a longer life of service. And the machine has lower noise running in high speed.

- Compact design in stainless steel, requires little space

- Low Transportation Cost, entire machine can be placed in one sea freight container, the costs for shipment are accordingly low.

Workshop Production:



Q1: Are you a trading company or a manufacturer?

A1: We have our own factory for many years,can give u best service.

Q2: What's your guarantee if we buy your machines?

A2: We offer you high quality machines with 1 year guarantee and free spare parts for 1 year. Meanwhile our engineers have rich experience and have gone to more than 50 countries for installation and commissioning.

Q3: When can I get my machine after I paid?

A3: We will deliver the machines on time as the date we agreed both side.

Q4: How can I install my machine when it arrives?

A4: Our engineer will go to your side as soon as you get your machines ready for testing and teaching your technicians how to run the machines.

Q5: What's the delivery time?

A5: 30-45 days after the T/T deposit or L/C.

Q6: Do you provide customized service?

A6: We can design the machines according to your requirements (material, power, filling type, container and etc), at the same time we will give you professional suggestion by many years industrial experience.
