5-10L Large Volume Water Bottle Stretch Blow Moulding Machine

Quantity:
  • MAXPET-02
  • FILLEX

1,The machine is fully automated;

2,Patented single-channel epidermal mechanism;

3.The high-pressure blowing combination valve made of aluminum alloy can be equipped with a gas recovery device to reduce energy consumption and protect the environment;

4.Touch operation is simple and convenient;

5.Modular design is convenient for disassembly and assembly;

6.PID constant control oven preform heating and fan exhaust;


About Heating System

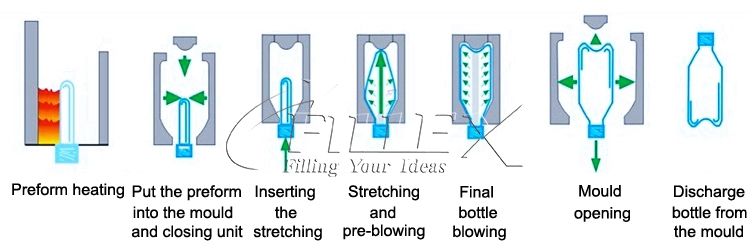

  • Automatic stretch blow molding machine adopts infrared type heating mode, whose superior thermal-radiation and thermal penetrability provide machine with powerful heating to meet strict preform heating requirement under speedy moving.

  • Infrared heating lamps placed onto three heating zone with 10 sets of independent voltage adjusting module and advanced microcomputer controller, can offer ideal heating for preform in different size.

  • Each lamp's horizontal position is adjustable to keep the machine flexible.

clamping
About Clamping System
  • Adopts four-plate type toggle clamping unit to provide powerful clamping force and increase the clamping speed.

  • Apart from the four-plate type toggle clamping unit, there is a high pressure assistant clamping device that is special designed to get a firm clamping.

  • Full automatic PET Bottle blowing Bar distance and circuitous type pre-form carrier systems, energy saving 50﹪

heating
About Pneumatic&Control System
  • High response, image high-quality control system, specially support simple USB program upgrade, providing strong guarantee for equipment upgrade, troubleshooting.

  • The servo motor use SMC cylinder.

  • Low-pressure control systems match with FESTO and PARKER



主机参数 Clamping System

模具腔数 Number of Cavities

2 Cavities

1 Cavities

锁模力 Clamping Force

65000 KG

65000 KG

模具行程 Mold Stroke

260 mm

320 mm

拉伸杆行程 Stretching Stroke

350 mm

460 mm

底模行程 Botton Stroke

50 mm

50 mm

瓶子间距 Cacity Pitch

220 mm

300 mm

胚头数 Number of Holder

80 PCS

48 PCS

制品参数 Container

最大容量 Max.Container volume

6000 ml

25000  ml

最大瓶子高度 Max.Container Height

350 mm

460 mm

最大瓶子直径 Max.Container Diameter

180 mm

230 mm

最大瓶坯高度 Max.Prefrom Height

200 mm

240 mm

最大瓶子外径 Max.Neck Diameter

45 mm

65 mm

理论产量 Theoretical Output

1500 B/H

400 B/H

电气参数 Electrical System

加热箱数量 Heating oven qty

4*4 PCS

4*4 PCS

灯管数量 Number of lamp

4*10 PCS

4*12 PCS

加热配置功率  Heating Power

72 KW

72 KW

电力总容量 Instakked Power

82 KW

80 KW

电压 Voltage

380V/50HZ

380V/50HZ

气源参数 Air System

工作压力 operating pressure

0.7-0.9 mpa

0.7-0.9 mpa

吹瓶压力 blowing pressure

2.5-3.0 mpa

2.5-3.0 mpa

高压耗气量 high pressure air consumption

4.8/30 L/min

4.0/30 L/min

配置功率 power

60 KW

44 KW

冷却水参数 Chiller System

温度范围 temperature

9-13

9-13

压力 pressure

0.4 mpa

0.4 mpa

额定功率 power

5 HP

5 HP

外形尺寸 Machine

主机尺寸 Machine Dimension

4.0*1.8*2.2m

4.0*1.8*2.2 m

重量 Machine Weight

4500 kg

4500 kg


A. Stable performance with advanced PLC.

B. Conveying preforms automatically with conveyor.

C. Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously in the infrared preheater.

D. High adjustability to enable the preheater to preheat preforms in shapes by adjusting the light tube and the length of the reflecting board in the preheating area, and eternal temperature in the preheater with an automatic thermostatic apparatus.

E. High safeties with security automatic-locking apparatus in each mechanical action, which will make the procedures turn into a state of safety in case of a breakdown in certain procedure.

F.No contamination and low noise with the air cylinder to drive the action instead of the oil pump.

G. Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.

H. Strong clamping force with high pressure and double crank links to lock the mold.

I. Two ways of operating: automatic and manual.

J. Safe, reliable, and unique design of the position of valve to make the air pressure diagram of the machine easier to understand.

K. Low cost, high efficiency, easy operation, easy maintenance, etc, with automatic technological process.

L. Contamination is avoided for the bottle body.

M. Ideal effect of the chilling with the chilling system.

N. Easy installation and starting

O. Low rejection rate: less than 0.3percent.

工厂1

Q1: Are you a trading company or a manufacturer?

A1: We have our own factory for many years,can give u best service.

Q2: What's your guarantee if we buy your machines?

A2: We offer you high quality machines with 1 year guarantee and free spare parts for 1 year. Meanwhile our engineers have rich experience and have gone to more than 50 countries for installation and commissioning.

Q3: When can I get my machine after I paid?

A3: We will deliver the machines on time as the date we agreed both side.

Q4: How can I install my machine when it arrives?

A4: Our engineer will go to your side as soon as you get your machines ready for testing and teaching your technicians how to run the machines.

Q5: What's the delivery time?

A5: 30-45 days after the T/T deposit or L/C.

Q6: Do you provide customized service?

A6: We can design the machines according to your requirements (material, power, filling type, container and etc), at the same time we will give you professional suggestion by many years industrial experience.
