Semi-automatic 5 Gallon 20L Plastic Bottle Blowing Moulding Machine PET Bottle Preform Making Machine

FL-90 5-gallon bottle blower is specifically designed to produce 5-gallon bottles as well as a variety of high-volume PET bottles
Availability:
Quantity:

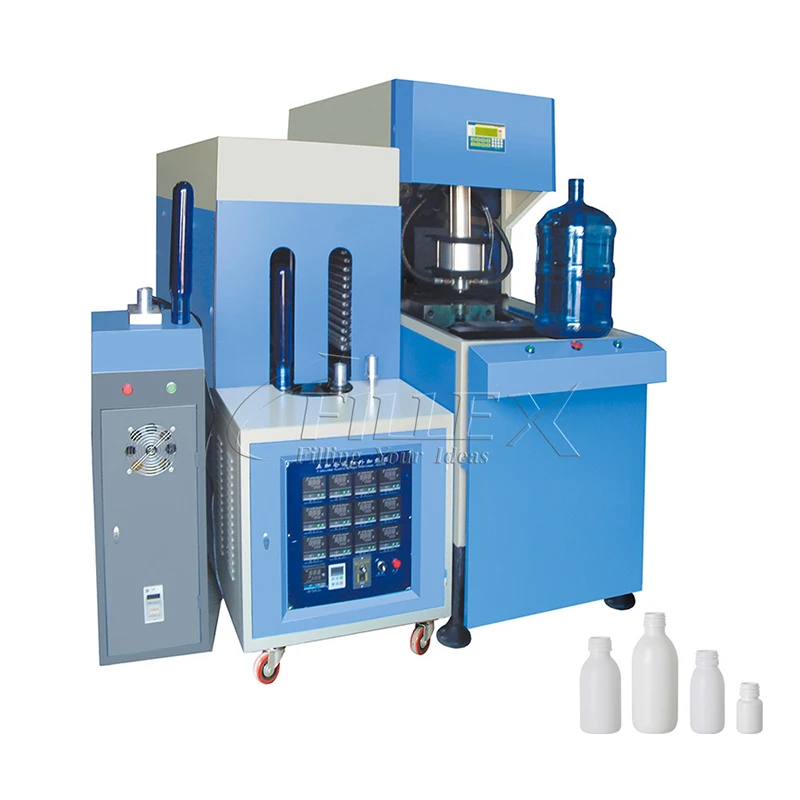

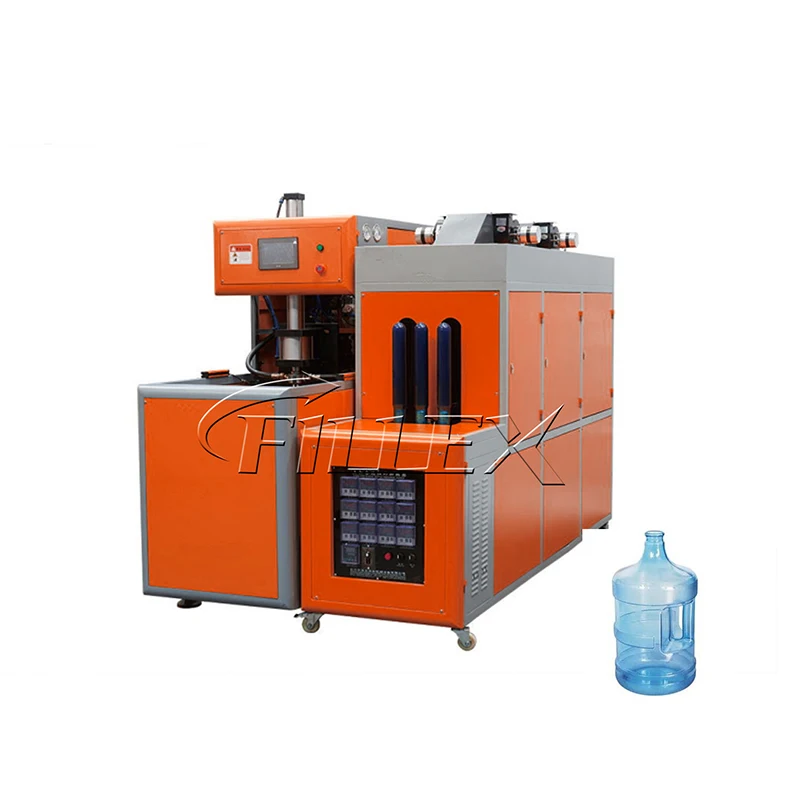

The FL-90 5-gallon bottle blower is specifically designed to produce 5-gallon bottles as well as a variety of high-volume PET bottles. The machine can produce up to 90 five-gallon bottles per hour, and even up to 120 per hour using light gram-weight bottle embryos. FL-90 is divided into blowing bottle host and rotating infrared heater. Due to the thick wall of the bottle embryo, the ordinary heating system cannot achieve the ideal heating effect of the bottle embryo, while the infrared heater can penetrate the inside and outside of the bottle embryo, and the heating is long-lasting and uniform, which ensures the good forming quality.

Features:

1. It is especially used to make PET bottles with a capacity of no more than 6 gallons

2. Suitable for the production of 25 litre bottle with an inner diameter of 200 mm.

3. Infrared ray heating was used to achieve uniform heating on the wall of the bottle embryo.

4. A special reheating device was used to ensure the ideal heating effect of 730 grams of thick-walled bottle embryos.

5. The cooling system ensures the quality of the neck of the bottle embryo.

6. Using a mold, the production of 5 gallon bottles can be up to 90 blowout bottles per hour.

7. Advanced PLC control system, with counting function, time control can be accurate to 0.01 seconds.

8. Special air storage device.

9. Easy to install and start up.


Product Paramenters

Model
FL-90
Output
Based on bottle shape
90 PCS/H
Product Specifications
Neck Diameter
65mm
Container diameter
330mm
Container height
550mm
Mold Specifications
Cavity
2 cavity
Max.Mold thickness
400mm
Mold effective area
420mm*500mm
Machine Power
Power Voltage
380-240-110/50-60 (3phase) V/HZ
Power
15kw
Air Source
High pressure air compressor
30Bar
Air dryer
2.0m³/min 30Kg
Blowing machine size
Length*width*height
1550*820*2000mm
Weight

1400Kg


Details Images
