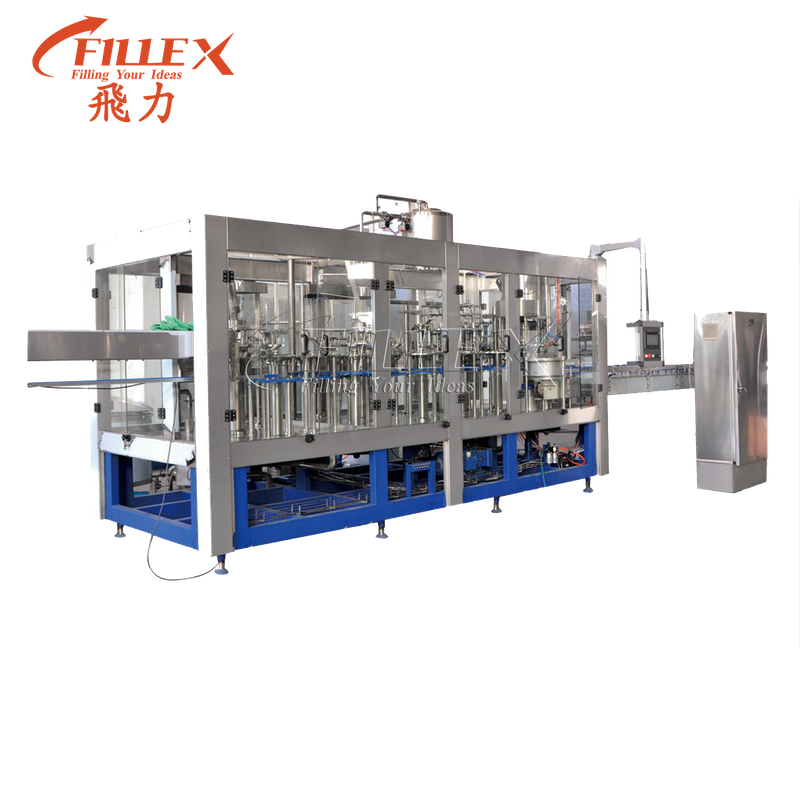

Fully Automatic Plastic Bottle Hot Filling Machine Production Line

The juice filling machine is mainly used in the beverage filling operations. The three functions of juice bottle wash, fill and seal are composed in one body of the juice filling machine.

Availability:

Quantity:



Inquiry Add to Basket

Product Description

Product Description

Bottle Juice Filling Machine

 1)The juice filling machine is mainly used in the beverage filling operations. The three functions of juice bottle wash, fill and seal are composed in one body of the juice filling machine.

2)The juice filling machine can also be used in hot filling if being installed with temperature controlling device. The handle of the juice filling machine can be freely and conveniently turned to adjust the machine to fill various types of bottles.

3)The juice filling operation is faster and more stable because the micro pressure filling operation of the new type is adopted. There the output and benefit of the juice filling machine is higher than the machines of the same specifications.

4)It is convenient to operate with higher automation because every part of the juice filling machine is inspected to run with photo electricity, On the bases, the juice filling parts of the machine can be changed into filling methods of lower vacuum.

Technical Parameter:

Model	10-8-4	14-12-5	16-16-5	24-24-8	32-32-8	40-40-10	50-50-12	60-60-15
Capacity(BPH)	1800	4000	8000	10000	12000	15000	18000	20000
Suitable to Bottle Shape	Round and Square container Bottle diameter:50-120mm Bottle Height:160-320mm
Drive Motor	2.02	2.42	3.12	3.92	3.92	5.87	7.87	11.37
Dimension(LWH)mm	226016202700	236017702700	276020602700	280022302700	355026502700	470033202700	590041502700	577052902700

Details Images

Juice Filling Machine Washing Part

 - Into juice bottle way is air conveyor direct connection with juice bottle dial.
- All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.
- 304/316 Stainless steel Gripper with plastic pad, ensure minimal juice bottle crash during washing.
- 304/316 stainless steel washing pump make the machine more durable.

Juice Filling Machine Filling Part

 - 304/316 Stainless steel high precision juice filling nozzle
- Filling volume adjustable in fine rank, same liquid level after filling
- All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
- 304/316 stainless steel juice filling pump
- Efficient spray nozzle rinse thoroughly and save water for flushing

Juice Filling Machine Capping Part

 - Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash duringcapping
- All 304/316 stainless steel construction
- No bottle no capping
- Automatic stop when lack of bottle


Air Conveyor

 - Air conveyor is fixed on the floor, with fan installed on the top.
- Air filter is positioned at every entrance of air fan, to prevent dust blown into bottles.
- Bottles are held on the neck in the conveyor and transported into filling machine by blowing power.
- All are made of stainless steel SUS 304 /316.


Bottle Conveyor

 - Energy saving. High efficient. Adapt to customer factory layout
- Special lubrication system, keep products clean, health, safety
- Extended service life
- Electric eyes design keep whole line running safety and quickly
- Overload protection mechanism to effectively ensure the safety of the machine
