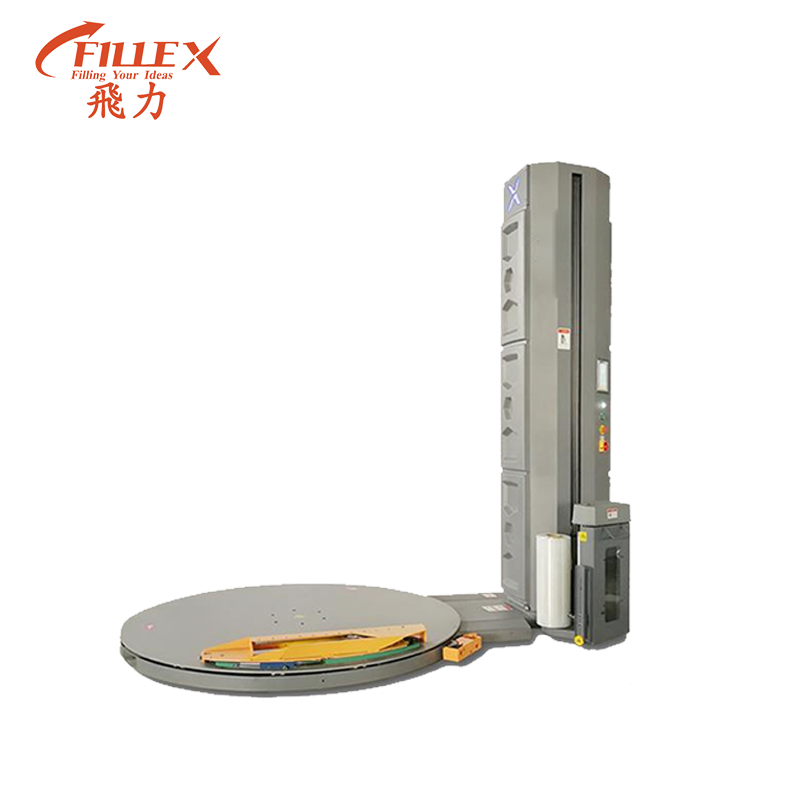

Fully Automatic Pallet Wrapping Machine

Availability:
Quantity:

1. Main Performance :

1. High efficiency and low electricity-consumption, convenient in operation.

2. The wrapping type and times can be designed on customers’ requirements.

3. Photoelectric sensor test pallet height automatic

4. Auto reset of turntable

5. Pre-stretch ratio: 300%

6. Programmable control and frequency converter is available.

7. PLC control ,manual optional. Wrap cycle (top, bottom, reinforcement) adjustment.

Variable lift speed/ film tension control. Film up/down controls.

8. Pallet stretch wraping machine soft start and soft stop.

9. Suitable for heavy pallet

10. Remote control sytem ,fully automatic cut and clamp film

2. Technical Parameters

Maximum Wrapping Speed

20-25 Loads/Hour

Load Size Diagonal

1753mm

Maximum Wrapping Height

2400mm

Turntable Speed

0-12Rpm(Adjustable)

Turntable Size

1650mm (1800mm 2000mm for option)

Turntable Drive

1Ph

Film Cut And Clamp

Automatic

Intelli-Sensor

Standard

Standard Film Width

500mm

Constant Film Delivery Force

Standard

Standard Pre-Stretch

300% Pre-Stretch

Wrap Force

Variable (Electric)

Film Capacity

250mm Diametery

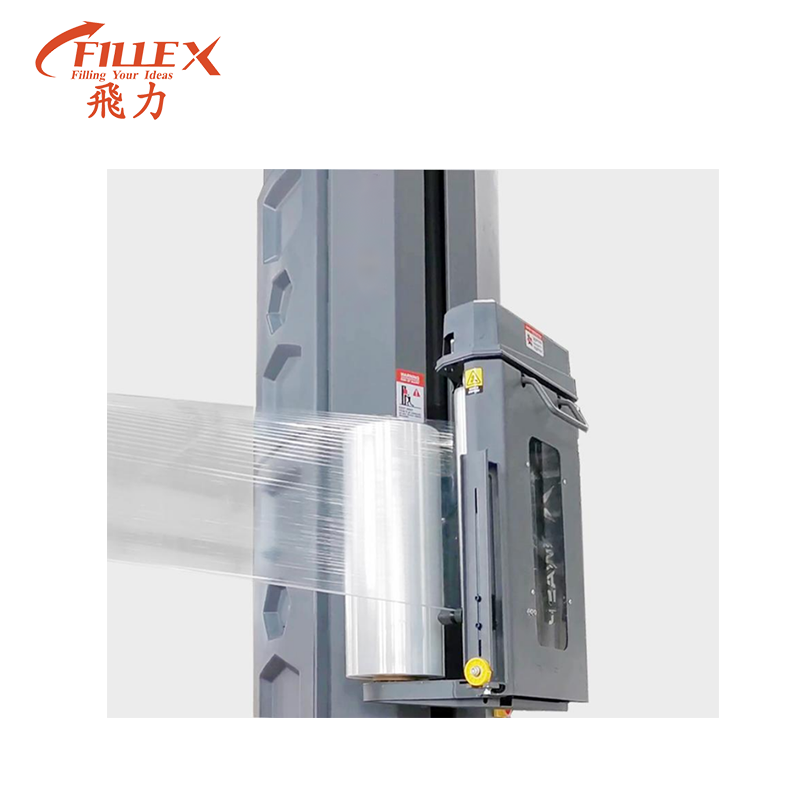

Film Delivery System

Power Roller -Stretch Plus

Film Rope System

Standard

Integrated Scale

Optional

Machine Weight

680Kg

Machine Size

L:2800mm  W:1650mm H:2745mm

Remote Control System

Have

Voltage

220/110V/50Hz

3. Features  :

Automatic Cut and Clamp Film

X100 automatic cut and clamp film system, let workers don't need to manually cut film and put film on pallet any more, cut & clamp fim system will do it automatically .

Pallet Grip System

Pallet grip system: film bottom narrowed to become film rope, film rope grip to pallet & products during wrapping.

1. During transporting, don't need worry the products fall down when the pallets get violent vibration.

2. If the forklift damage the film on the bottom of pallet, the film will not break .

3. Pallet bottom grip and whole journey grip rope system can be instead of the horizontal strapping machine

Saving Film Consumption

Maximum up to 380% pre-stretch rate

Minimum the value of each meter of stretch film

Standard constant releasing film

Fixed-pointed wrapping quantitative use film

Multi-layer Function

This function can set different wrapping circles, wrapping force at any height that you want. Maximum one pallet can set 9 layers. Normal machines' wrapping force from bottom to top is the same in market, and they cannot stop or achieve reinforce wrapping function during wrapping.

Better Spare Parts

SIEMENS PLC

SICK proximity switch

AUTONICS photoelectric switch

WEIDMULLER terminal block

X-LINE Inverter

OMRON 24DC supply

Advanced Safety Technology

1. Safety device under film carriage to protect the foot or head of the operator

2. Transparent board makes it easy to find problem without opening door

3. Up and down belt deviation and demaged alarm system. Alarming in time to avoid carriage dropping down.

Intelligent Operation Guiding System

1. X100 with LED indicator on machine

Ready for work--Blue color

During working--Green color

Alarm--Red color

2. Touch screen guide the user how to operate machine. If alarm appears, toch screen will show you how to solve problem.

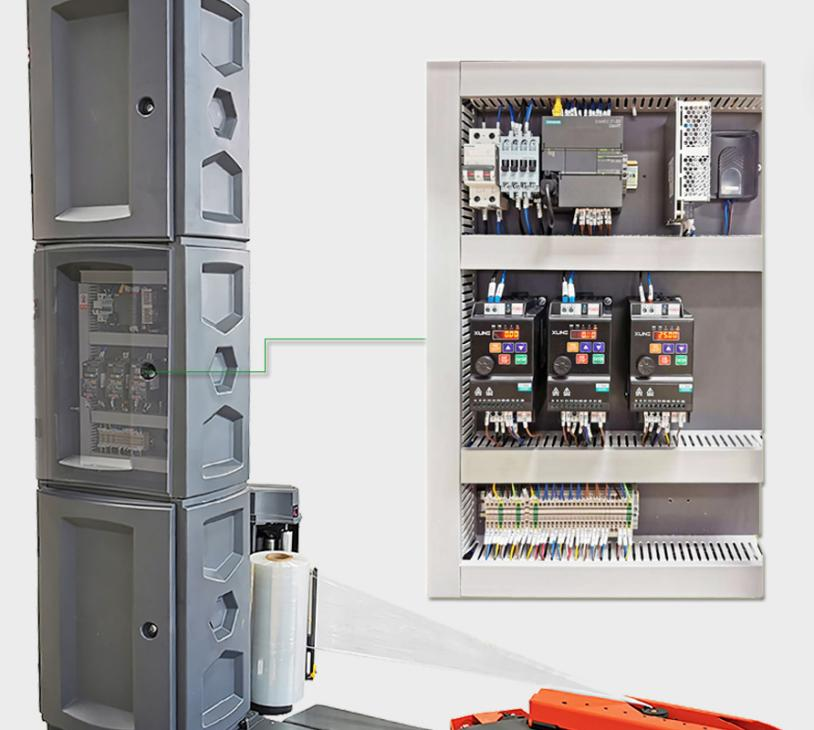

4. Configuration List:

Spare Parts

Brand

Inverter

X-LINE

Photoelectric Sensor

SICK(Germany)

PLC

SIEMENS(Germany)

Travel Switch

OMRON(Japan)

Motor

GPG(Taiwan)

Relay

OMRON(Japan)

Reducer

GPG

Position Switch

SICK(Germany)

Touch Screen

SIEMENS 7inch

Contractor

SIEMENS

Special Process

Introduction

Frame

Steel+ABS

Printing

Metallic Paint

Fall-Proof

Inside Safety Belt

Cutting

Laser

Turntable Roller

Double Nylon Roller

Up&Down Drive

Belt

Up&Down Guideway

Double Balance Device

X100全自动 智能缠绕机X100全自动 智能缠绕机-4
