3 in 1 Filling Makes Filling More Efficient

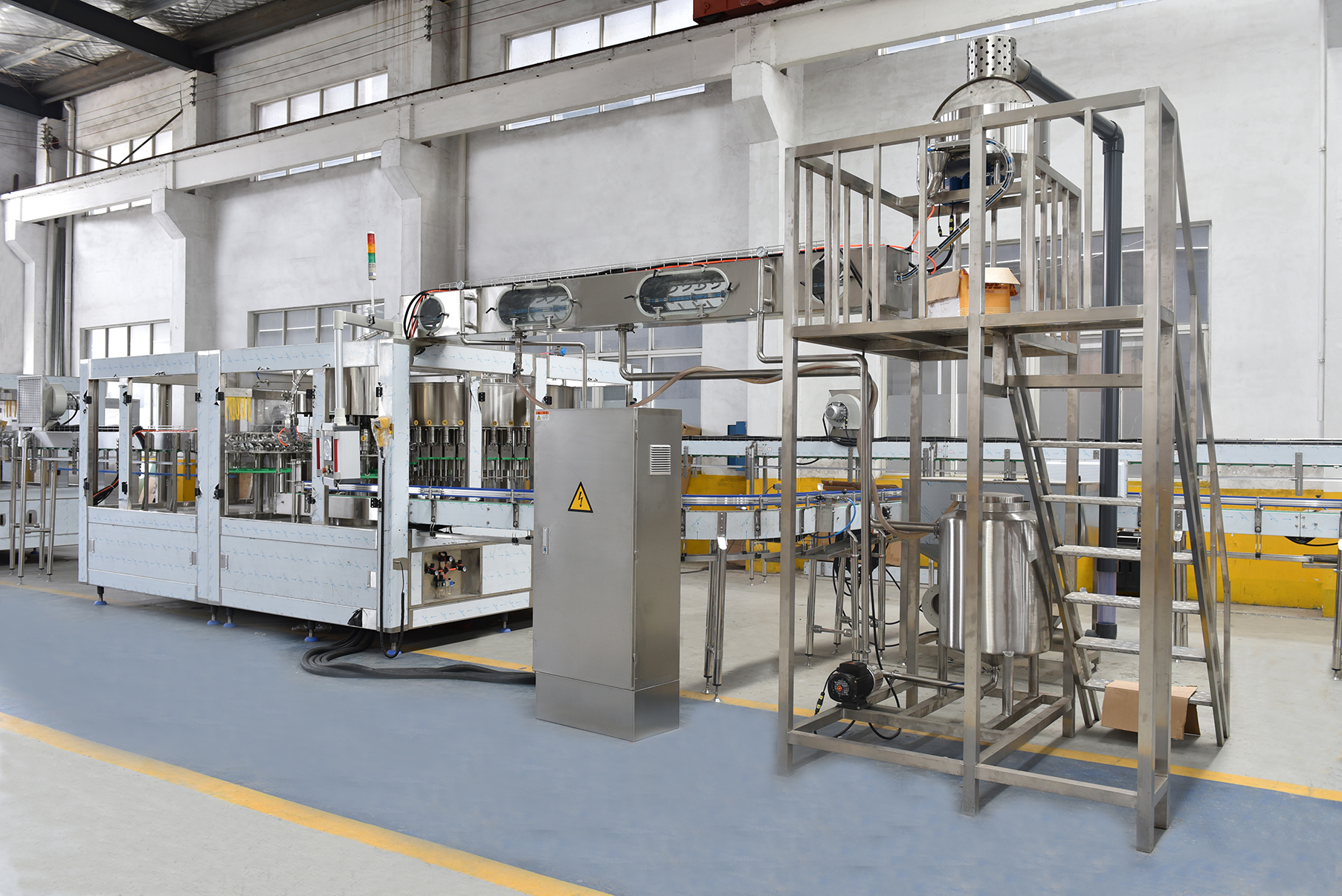

3 in 1 filling machine

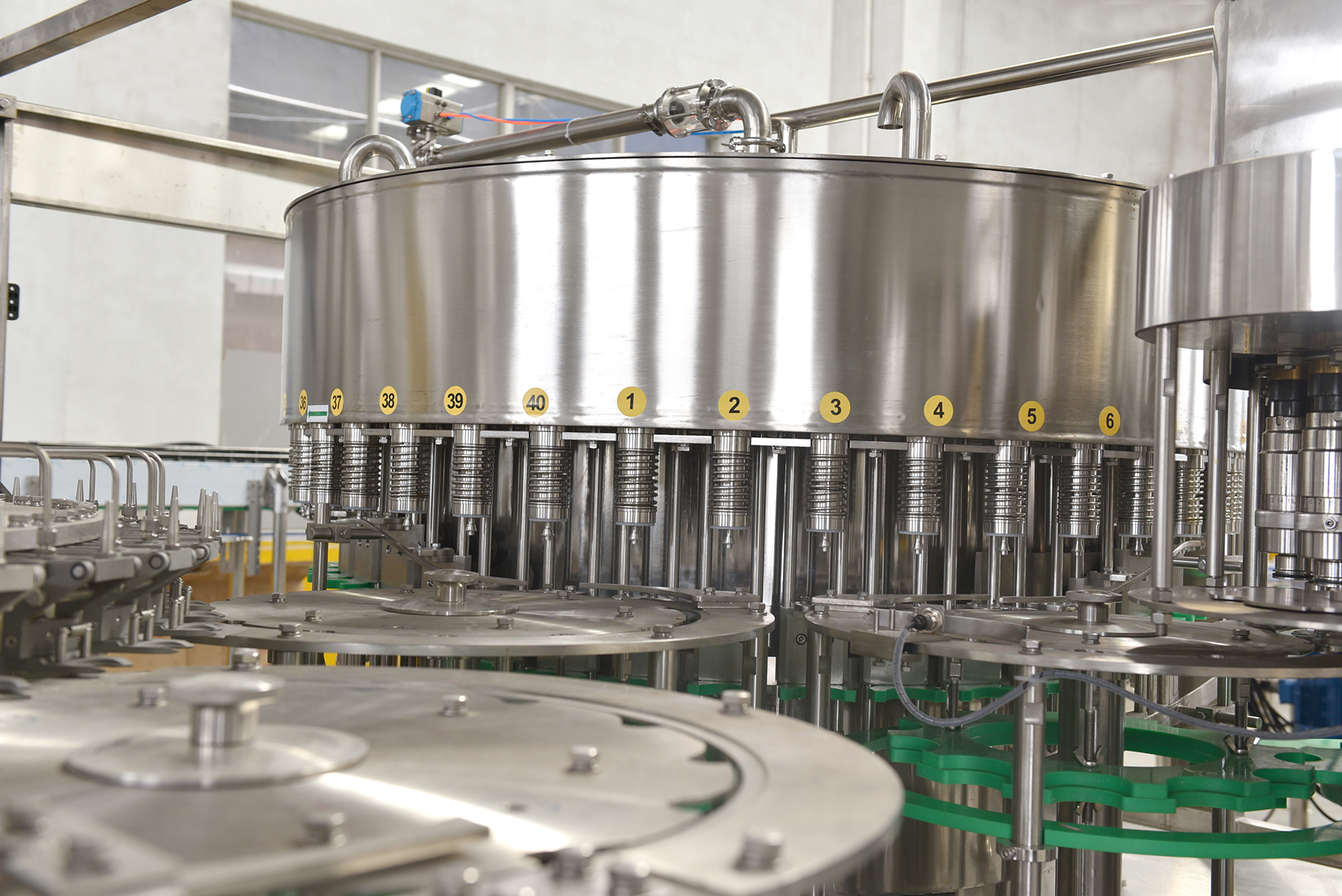

This series of equipment integrates washing, filling and sealing, and is suitable for hot filling production of various juice and tea beverages. At the same time, it can be used for pure water and mineral water filling by replacing a small amount of parts. The output is 5000-24000 bottles/hour, which can be selected by users. Adopting advanced micro-negative pressure gravity filling principle, filling is fast, stable and accurate. It is equipped with a complete material return system, and can also realize independent air return during return, without contact with materials, reducing secondary pollution and oxidation of materials. This machine can meet the technical requirements of hot filling below 95 degrees Celsius. The filling valve and material inlet and outlet pipelines have no sanitary dead corners. At the same time, it is equipped with a CIP self-cleaning interface. Contamination residues. The magnetic torque-type capping head is adopted, and the capping head made of red copper material can realize fast and accurate capping and capping functions. The screwing torque is steplessly adjustable, and it has the function of screwing and sealing the plastic cover with a constant torque. The whole machine adopts advanced technologies such as man-machine interface touch screen control, PLC computer program control, and inverter control. It has the functions of automatic control of the cap supply system, automatic detection of the filling temperature, high temperature alarm of the material, low temperature shutdown and automatic reflux, no caps without bottles, waiting for lack of bottles, shutdown without caps, etc.
