Large Bottle Water Filling Machine (3-10L)

Quantity:
[

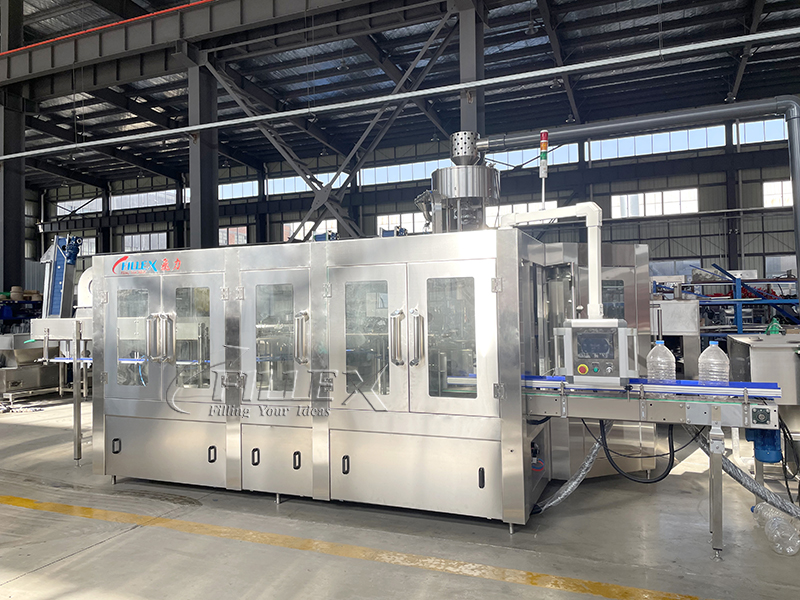

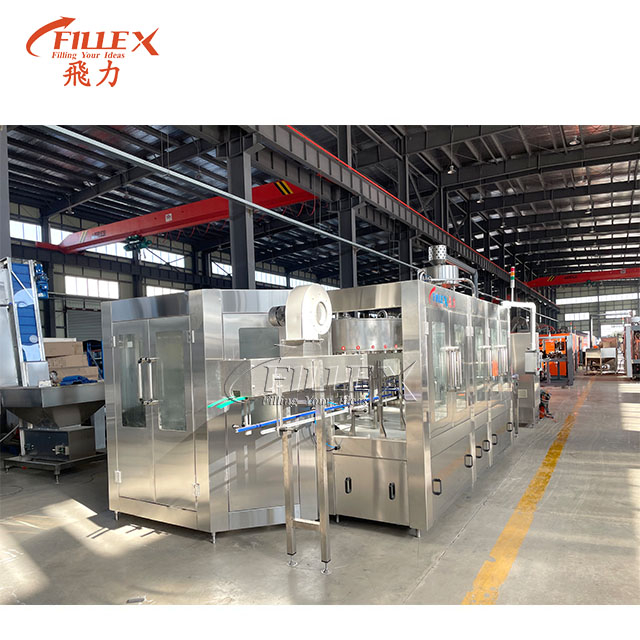

10L Autoamtic Rotary Pet Big Bottle Pure Water/Mineral Water Bottle Filling Machine combines bottle washing filling and capping in one machine, It is the domestic advanced level of pure water filling production line, which is designed and developed based on foreign advanced technology according to filling process requires pure water s, and can achieve the requirements, with complete CIP cleaning function. The production line is suitable for water filling in room temperature


]
[

Main technical parameters

Model

RFC-W 8-8-4

RFC-W 12-12-4

RFC-W 16-16-4

RFC-W 20-20-5

RFC-W 25-25-5

Capacity

700bph

15000bph

2000bph

3300bph

4000bph

Power

2.42kw

3.12kw

3.92kw

3.92kw

5.87kw

Dimension

2360x1770x2700

2760x2060x2700

2800x2230x2700

3550x2650x2700

4700x3320x2700

Weight

2500kg

3500kg

3800kg

4200kg

5000kg

Large Bottle Water Filling Machine (5-10L)

Bottle Filling Machine

01

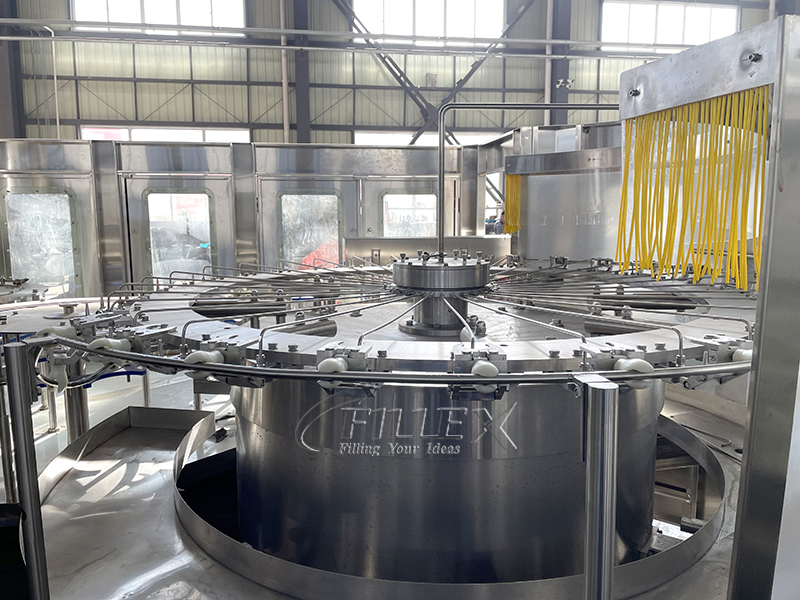

About Rinser Station
  • Neck Control with plastic snap on the gripper.

  • Water distributor combined with Food Grade Rubber plate & SUS304 cover.

  • SUS304 water collecting tray

  • Spraying inject design, can completely wash the bottles.

Rinser Station
02

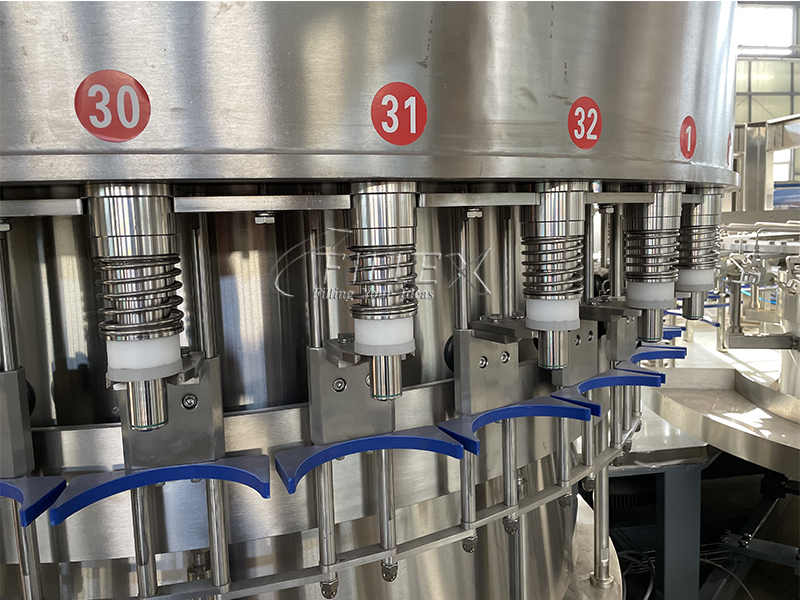

About Filler Station
  • The entire filler is gravity filling system.

  • High accurate SUS304 construction filling nozzle, make sure high accurate filling level

  • SUS304 liquid bowl, & pipeline system.

  • Filling level adjustable by choosing different silicone gasket (quick change over parts)

  • Annulus Liquid bowl, with automatic water level controller

Filler Station
03
About the Capper
  • Place & capping system. Automatic caps arranging, feeding.

  • Electromagnetic capping heads, with burden discharge function,

  • All 304stainless steel construction

  • No bottle no caps delivery.

  • Automatic stop when lack of bottle

Capper
,

Main technical parameters

Model

RFC-W 8-8-4

RFC-W 12-12-4

RFC-W 16-16-4

RFC-W 20-20-5

RFC-W 25-25-5

Capacity

700bph

15000bph

2000bph

3300bph

4000bph

Power

2.42kw

3.12kw

3.92kw

3.92kw

5.87kw

Dimension

2360x1770x2700

2760x2060x2700

2800x2230x2700

3550x2650x2700

4700x3320x2700

Weight

2500kg

3500kg

3800kg

4200kg

5000kg

Large Bottle Water Filling Machine (5-10L)
]
[

Place & capping system. Automatic caps arranging, feeding.

Electromagnetic capping heads, with burden discharge function,

All 304stainless steel construction

No bottle no caps delivery.

Automatic stop when lack of bottle

,

Place & capping system. Automatic caps arranging, feeding.

Electromagnetic capping heads, with burden discharge function,

All 304stainless steel construction

No bottle no caps delivery.

Automatic stop when lack of bottle

]
[

Large Bottle Water Filling Machine

]
[

Q1: Are you a trading company or a manufacturer?

A1: We have our own factory for many years,can give u best service.

Q2: What's your guarantee if we buy your machines?

A2: We offer you high quality machines with 1 year guarantee and free spare parts for 1 year. Meanwhile our engineers have rich experience and have gone to more than 50 countries for installation and commissioning.

Q3: When can I get my machine after I paid?

A3: We will deliver the machines on time as the date we agreed both side.

Q4: How can I install my machine when it arrives?

A4: Our engineer will go to your side as soon as you get your machines ready for testing and teaching your technicians how to run the machines.

Q5: What's the delivery time?

A5: 30-45 days after the T/T deposit or L/C.

Q6: Do you provide customized service?

A6: We can design the machines according to your requirements (material, power, filling type, container and etc), at the same time we will give you professional suggestion by many years industrial experience.

]
