Availability: | |
---|---|
Quantity: | |

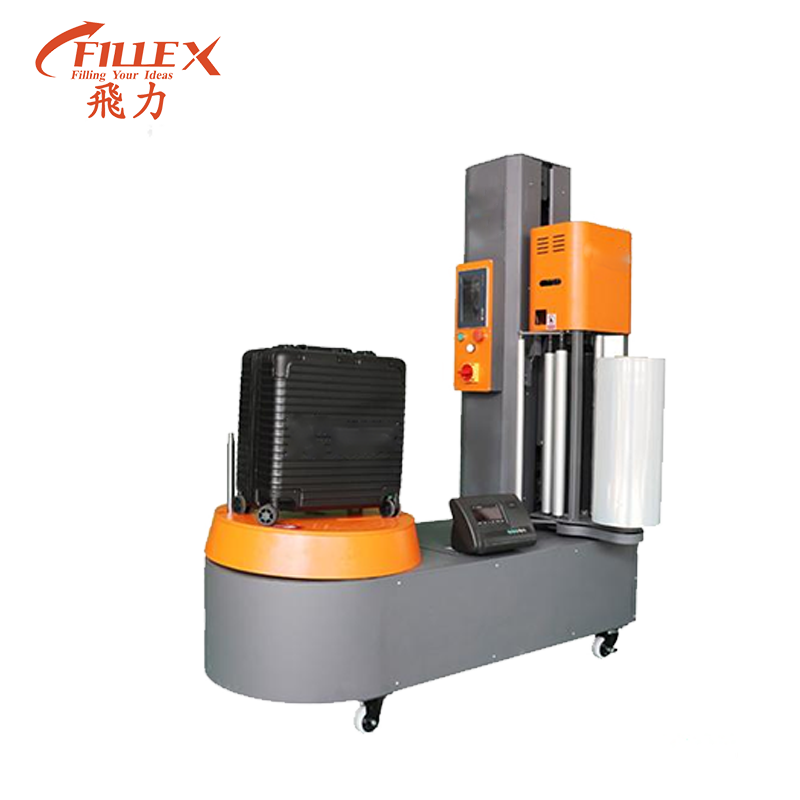

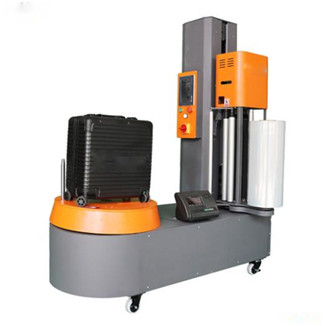

FL-X0BG
Main Performance :
1.X-line IoT Technology
Intuitionistic, sasy to operate.
2.250% Pre-stretch Rate
The film can be stretched 1m to 3.5m by our wrapping machine, it's can more save cost.
3.Photoelectric sensor
Through the height of photoelectric sensor induction wrapping, more intelligent and faster.
4.Pneumatic compression rod
Pneumatic pressurization prevents scattering and displacement during pallets wrapping.
Technical Parameters
Brand | Fillex | Model | X0-BG |
Turntable diameter | 500 mm | Minimum wrapping height | 0mm |
Column height | 1280 mm | Wrapping force | Adjustable |
Pre-stretch rate | 250% | ||
Film diameter | 250mm | PLC | X-line |
Turntable speed | 0-20r/min | Inverter | X-line |
Up/down speed | 6m/min | Travel switch | Omron |
Film speed | 5m/min | Relay | Omron |
Machine weight | 400KG | ||
Load weight | Maximum 50KG | ||
Total power | 1.2KW | ||
Machine size | 1357*765*2565mm(L*W*H) | ||
Voltage | 220V |

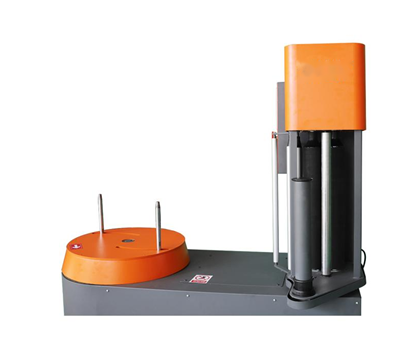

Locating and Securing Device
Double arm fasteners locate and secure the luggage. Automatic tightening, strong clamping device to ensure goods do not slide out.

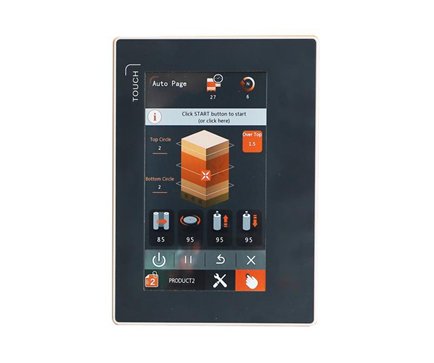

Intelligent Touch Operating System
X-Line Touch Screen
Intuitionistic, easy to understand and operate
Saving Film Consumption
300% pre-stretch rate
Maximize the value of each meter of stretch film
Standard constant releasing film
Fixed-point wrapping and quantitative consume film
Weighing Scale Optional
The weighing device is optional, which can be equipped according to customers' requirements. Help users know the weight of each case exactly.

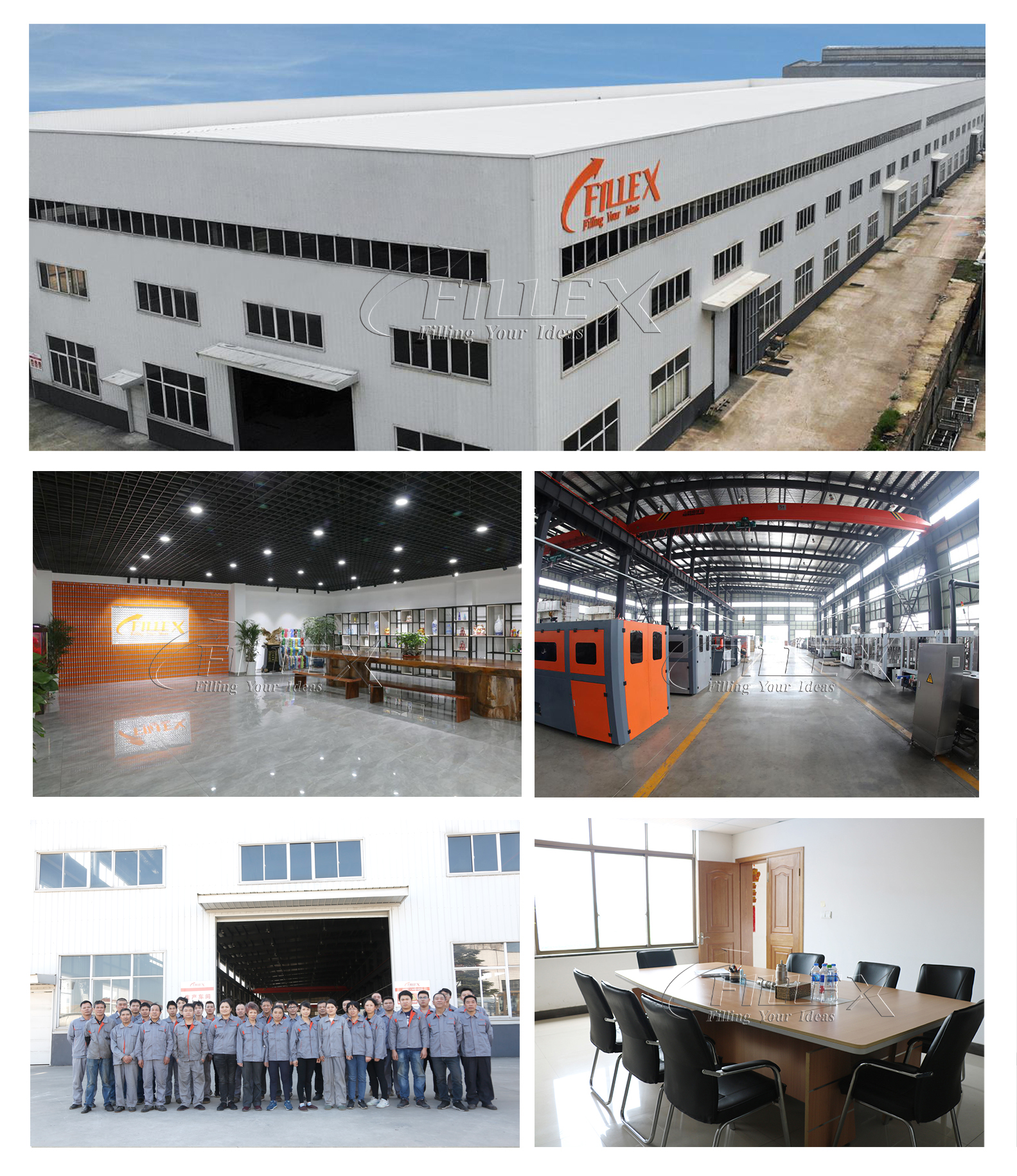

Company

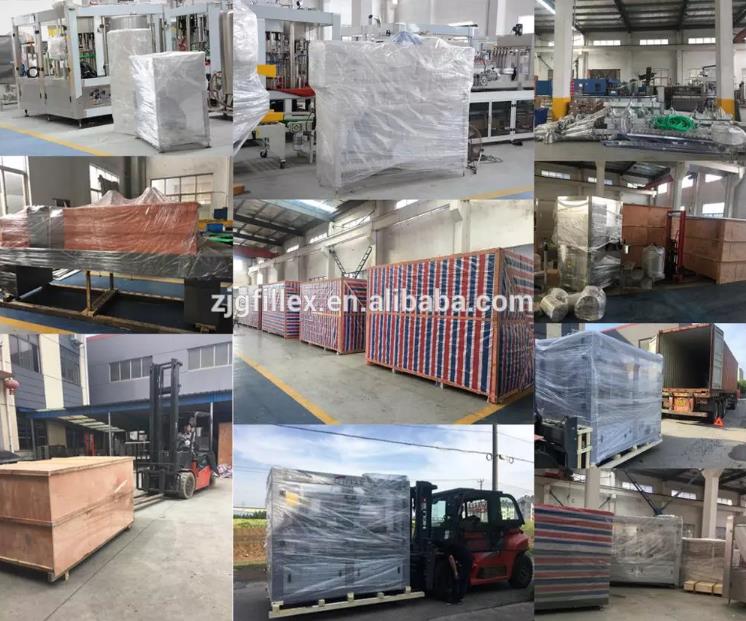

Packing & Shipping
FAQ
Q1: Are you a trading company or a manufacturer?
A1: We have our own factory for many years,can give u best service.
Q2: What's your guarantee if we buy your machines?
A2: We offer you high quality machines with 1 year guarantee and free spare parts for 1 year. Meanwhile our engineers have rich experience and have gone to more than 50 countries for installation and commissioning.
Q3: When can I get my machine after I paid?
A3: We will deliver the machines on time as the date we agreed both side.
Q4: How can I install my machine when it arrives?
A4: Our engineer will go to your side as soon as you get your machines ready for testing and teaching your technicians how to run the machines.
Q5: What's the delivery time?
A5: 30-45 days after the T/T deposit or L/C.
Q6: Do you provide customized service?
A6: We can design the machines according to your requirements (material, power, filling type, container and etc), at the same time we will give you
professional suggestion by many years industrial experience.
