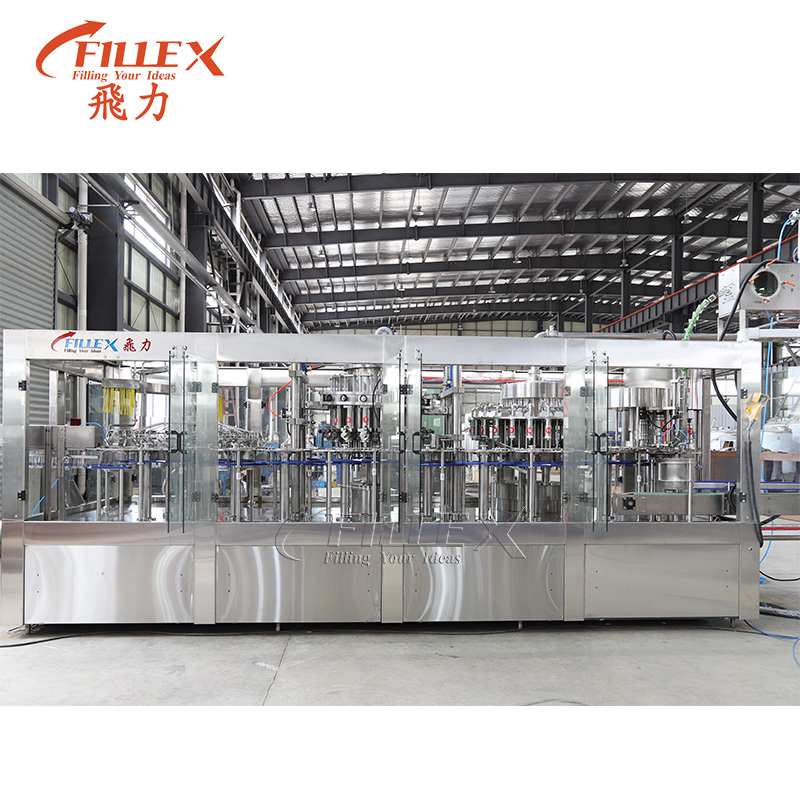

This machine is comprised of rinsing, filling and capping system. Rinsing: grip the bottle neck, rotate filling plate, inverse bottle; internal rinsing and external spraying make bottles be cleaned completely. Filling: hot filling with holding bottle neck; the special backflow type of the filling valve can avoid leakage after filling and also control liquid level accurately. Capping: magnetic torque bottle holding type can minimize the cap damage rate and make the capping performance the best.
| Quantity: | |
|---|---|
Hot sale automatic fruit pulp juice filling machine is used to fill juice, tea and other non-gas beverage.
All the machine part which contact with liquid is high quality stainless steel 304. The relative fittings are from international famous brand.
The automatic fruit pulp juice filling machine is equipped with suspension type air conveyor and frequency control of motor speed.
This machine is comprised of rinsing, filling and capping system. Rinsing: grip the bottle neck, rotate filling plate, inverse bottle; internal rinsing and external spraying make bottles be cleaned completely. Filling: hot filling with holding bottle neck; the special backflow type of the filling valve can avoid leakage after filling and also control liquid level accurately. Capping: magnetic torque bottle holding type can minimize the cap damage rate and make the capping performance the best.
This machine owns the reasonable, stable and safe design. Under the condition that the bottle neck size is the same, only the output star wheel needs to be changed if bottles are different. It improves the efficiency a lot.
Technical Parameter:
| Model | 14-10-12-5 | 16-12-16-5 | 24-16-24-8 | 32-24-32-8 | 40-32-40-10 |
| Capacity | 4,000 | 8,000 | 10,000 | 12,000 | 15,000 |
| Suitable to Bottle Shape | Round and square bottle Bottle Diameter : 50-120mm Bottle Height :160-320mm | ||||
| Drive Motor | 2.42 kw | 3.12 kw | 3.92 kw | 3.92 kw | 5.87kw |
| Dimension | 2360*1770*2700 | 2760*2060*2700 | 2800*2230*2700 | 3550*2650*2700 | 4700*3320*2700 |

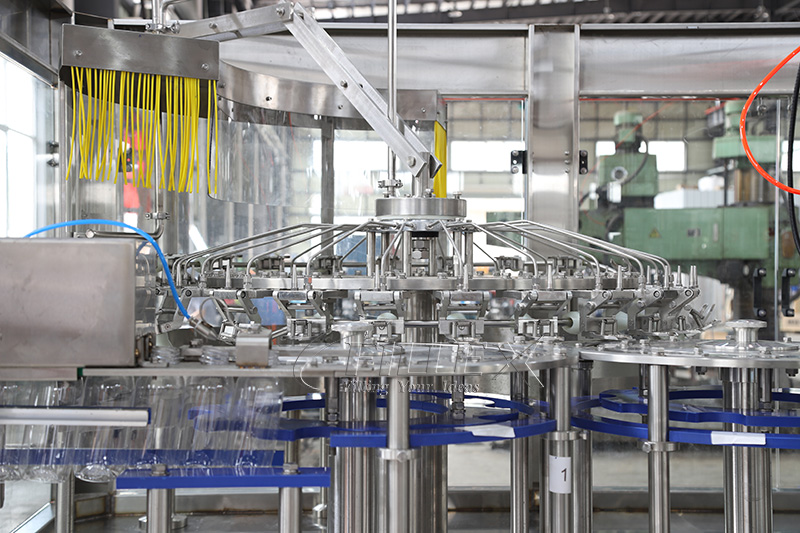

Neck Control with plastic snap on the gripper.
Water distributor combined with Food Grade Rubber plate & SUS304 cover.
304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.
304/316 stainless steel washing pump make the machine more durable.

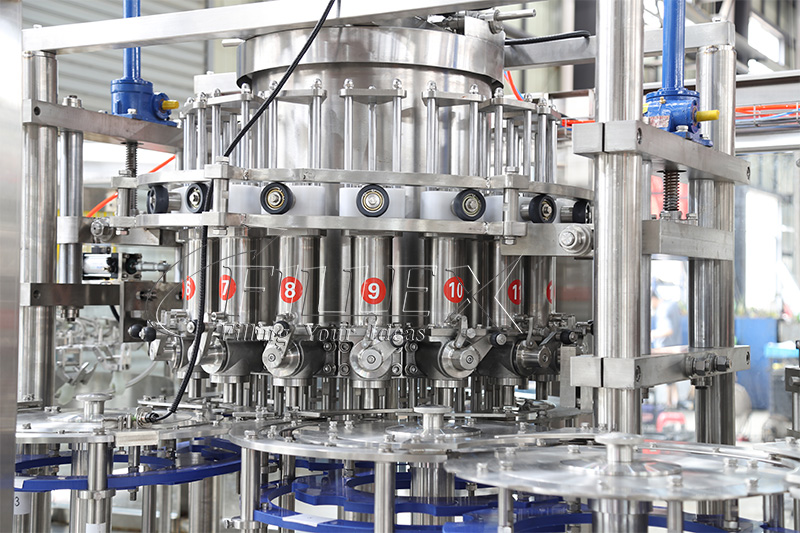

About Pulp Filler Station
We adopt the piston filling type to fill the pulp separate with the juice.
304/316 Stainless steel high precision filling nozzle.
Filling volume adjustable in fine rank, same liquid level after filling
All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean.

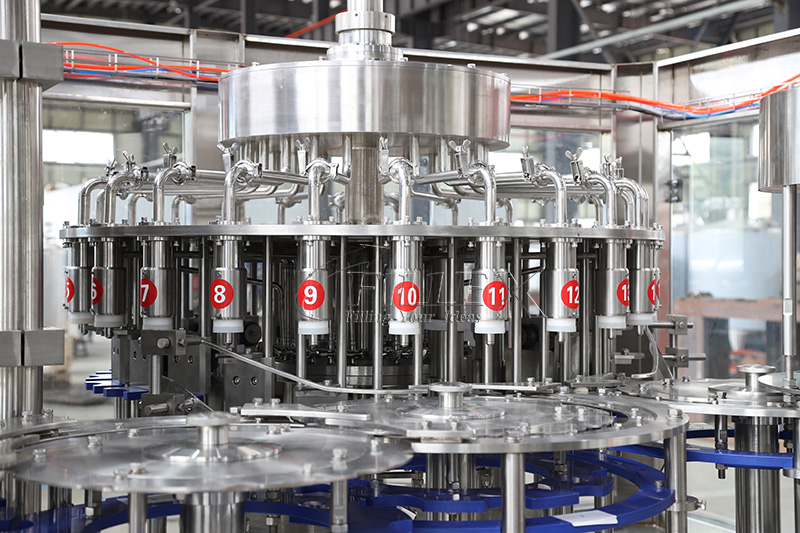

About Juice Filler
We will make a cover installed on the filling valve, avoiding the fruit pulp return inside the reflux pipe to block the pipe.
Filling valve and bottle lifter uses adopt German Igus bearings which are corrosion-resistant and maintenance-free.
By install CIP cleaning cups, the filling machine can realize online CIP cleaning

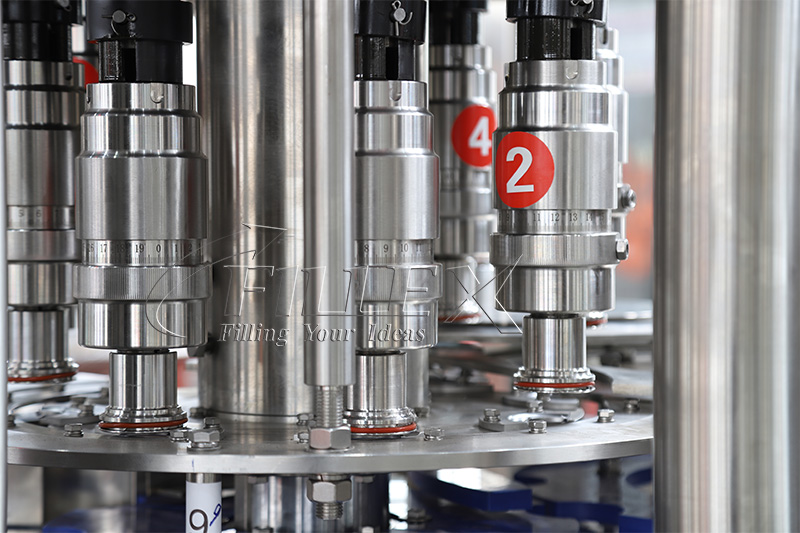

About the Capper
Place & capping system. Automatic caps arranging, feeding.
Electromagnetic capping heads, with burden discharge function,
All 304stainless steel construction
No bottle no caps delivery.
Capping effect is stable and reliable ，Defective rate ≤0.2％.
Features:
1. Air Conveyor connects with bottle-in star-wheels. Bottle neck holding transferred.
2. Clamp transferring technology varied bottle types.
3. With little abrasion. Stable Transferring. Easy to change bottles.
4. With ring type pressure bearing hydraulic cylinder.
5 With high filling speed and exact liquid level.
6.Excellent Stainless Steel. Electric Components are of world known brand. All achieve national sanitary standard.
7. The bottle-out star-wheel is of screw-down shape. No need to adjust transferring chain's height to different bottles.
8. Easy to operate and maintain.
FAQ:
Q1: Are you a trading company or a manufacturer?
A1: We have our own factory for many years,can give u best service.
Q2: What's your guarantee if we buy your machines?
A2: We offer you high quality machines with 1 year guarantee and free spare parts for 1 year. Meanwhile our engineers have rich experience and have gone to more than 50 countries for installation and commissioning.
Q3: When can I get my machine after I paid?
A3: We will deliver the machines on time as the date we agreed both side.
Q4: How can I install my machine when it arrives?
A4: Our engineer will go to your side as soon as you get your machines ready for testing and teaching your technicians how to run the machines.
Q5: What's the delivery time?
A5: 30-45 days after the T/T deposit or L/C.
Q6: Do you provide customized service?
A6: We can design the machines according to your requirements (material, power, filling type, container and etc), at the same time we will give you professional suggestion by many years industrial experience.
